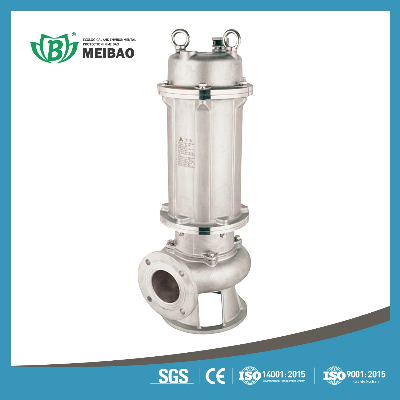

Stainless Steel Vertical Submersible Pump Water Pump Centrifugal Pump Slurry Pump

Stainless Steel Vertical Submersible Pump Water Pump Centrifugal Pump  Slurry Pump  Product DescriptionProduct Overview of Submersible Pump1, The national standard flange WQ(D)-S all stainless steel sewage submersible pump adopts stainless steel precision casting shell, with corrosion resistance, environmental protection, high head, large flow and so on.2, The oil chamber adopts fluororubber double-sided mechanical seal, and the outer chamber adopts single-sided fluororubber mechanical oil seal structure, which effectively reduces the sealing leakage problem caused by the friction between the skeleton oil seal and the shaft.3, The motor adopts high temperature line, F insulation, thermal protection device, effectively extend the service life of the pump.4, According to customer requirements, can bring the mixing device, the device rotates with the motor shaft to produce a strong stirring force, the sediment in the sewage pool stirred into a suspended matter out. It can also be equipped with a cutting device, which can remove long fibers, plastics, paper bags, straw and other debris in the sewage.5, According to the special requirements of customers customized anti-corrosion cable, PTFE sealing, and high-temperature liquid parts configuration.Application of Meibao of Submersible PumpSuitable for buildings, hospitals, residential areas, municipal engineering, road traffic and construction, factory sewage, aquaculture, pharmaceutical, beverage, seawater salt water, general corrosive media containing solid particles, long fiber waste water, sewage.Detailed PhotosProduct ParametersModelFlowHeadPowerVoltage(V)Aperture(mm)Speed(r/min)Outline mounting dimensionPump outlet size(m³/h)(m)(kW)LBHH1DdWQ(D)3-7-0.25S370.25220/380252860/290020015537265G1Φ25WQ(D)4-5-0.25S450.25220/380322860/290020015537265G1Φ32WQ(D)7-3-0.25S730.25220/380402860/290020015537265G1Φ40WQ(D)3-9-0.37S390.37220/380252860/290020015537265G1Φ25WQ(D)5-7-0.37S570.37220/380322860/290020015537265G1Φ32WQ(D)7-5-0.37S750.37220/380402860/290020015537265G1Φ40WQ(D)3-12-0.55S3120.55220/380252860/290023616240167G1Φ25WQ(D)4-10-0.55S4100.55220/380322860/290023616240167G1Φ32WQ(D)7-7-0.55S770.55220/380402860/290023616240167G1Φ40WQ(D)10-9-0.75S1090.75220/380402860/290023616242867G1Φ40WQ(D)12-8-0.75S1280.75220/380502860/290024216242867G1Φ50WQ(D)15-6-0.75S1560.75220/380652860/290024216242867G1Φ65WQ(D)8-15-1.1S8151.1220/380402860/290023616245167G1Φ40WQ(D)12-12-1.1S12121.1220/380502860/290024216245167G1Φ50WQ(D)20-6-1.1S2061.1220/380652860/290024216245167G1Φ65WQ(D)6-18-1.5S6181.5220/380402860/290023616245167G1Φ40WQ(D)15-15-1.5S15151.5220/380502860/290024216245167G1Φ50WQ(D)25-7-1.5S2571.5220/380652860/290024216245167G1Φ65WQ15-20-2.2S15202.238050290027420055475G1Φ50WQ25-12-2.2S25122.238065290027420055475G1Φ65WQ15-25-3S1525338050290027420055475G1Φ50WQ25-15-3S2515338065290027420055475G1Φ65WQ15-34-4S1534438050290027420055475G1Φ50WQ25-27-4S2527438065290027420055475G1Φ65CertificationsPackaging & ShippingCompany ProfileOur Advantages    /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
