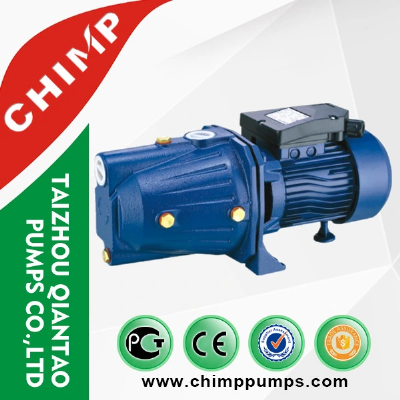

High Pressure Self-Priming Jet Water Pump

 PUMPStainless steel/brass/ppo impellerMax. Liquid termperature: +40ºCMax. Suction: 9mCast iron pump body and supportMOTORMotor with copper windingShaft: stainless steel welded with 45#/45# steel be electroplatedInsulation class: B or FProtection class: IP X4Max.Ambient temperature:+40ºCCooling: External ventilationPUMP INSTALLATION AND APPLICATIONSIt can be used to transfer clear water or other liquids similar to water in physical and chemical properties. It is suitable for lifting water from the well, sprinking irrigation in garden, pressure boosting of running water, and suppporting equipment etc.NO.DESCRIPTIONNO.DESCRIPTIONNO.DESCRIPTIONNO.DESCRIPTION1pump body11Washer21Housing31"O" ring2charge plug12Impeller22Stand32Wound stator3"O" ring13"O" ring23Fairlead33Rotor4"O" ring14Key24Cable presser34Split ring5Nozzle15Mechanical Seal25Screw35Back cover6"O" ring16pump support26Terminal board36Bolt7Venturi pipe17Drops guard27Capacitor37Fan8Diffuser18Bearing28Terminal box cover38Fan cover9Nut19Snap ring29Bolt  10Snap ring20Bolt30Charge plug   PRODUCTS TECHNIQUE MODELPOWERMAX.FLOWMAX.HEADMAX.SUCTINLET/OUTLETGWPACKING DIMENSION(MM)kWHP(l/min)(M)(M)(inch)(kgs)M/600.450.64038       91"x 1"12.844*20*23M/700.60.85040       91"x 1"13.144*20*23M/800.7516045       91"x 1"13.844*20*23M/1001.11.560      55       91"x 1"15.545.5*20*23M-2001.5218541       91 1/2"x 1 1/4"2653*22*23M-3002.2320051       91 1/2"x 1 1/4"2753*22*23Company profileHistory: More than 20 years experience of manufacturing pumps and motors; Scale: Cover working area of 11000 square meters and around 300 employees; Technology: Three groupsof professional technical engineers and strong R& D team; Management: Scientific ERP management and strict quality control system; Equipments: Automatic wiring machine, Automatic paint spraying equipment, CNC precision automatic lathe, electrophoresis line; Innovation: Continuously diversity products range to satisfy customers' needs; Production capacity: 40000 pcs/monthMarketing network: Africa, America, Asia and EuropeCertificates: CE, RoHs, ISO9001Marketing models: Exports and domestic sales FAQ  Q: What is your MOQ of this item? A: Our MOQ is a full 20ft container, first time cooperation, we accept trial order to check quality.   Q: Is it acceptable to make customers' own brand? A: Sure, we can do OEM.   Q: What are your payment terms?  A: 30% T/T deposit, 70% against documents, or L/C at sight.   Q: How long is your warranty? A: One year!   Q: What is the delivery time? A: 25-30 days after receiving your L/C or T/T deposit.     /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
