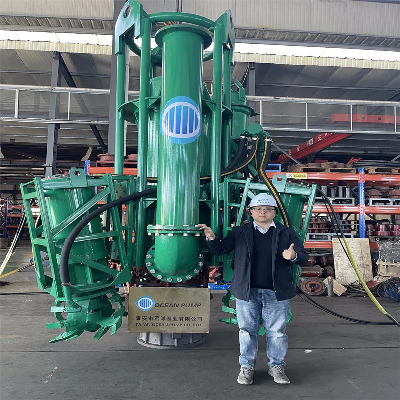

Submersible Slurry Heavy Duty Sewage Sand Suction Dredge Submersible Slurry Pump

Submersible Slurry Heavy Duty Sewage Sand Suction Dredge Submersible Slurry PumpProduct DescriptionZJQ submersible sludge pump is hydraulic machinery, the motor and the pump of which are coaxially submerged in medium to work. The overflowing parts of the pump are made from high alloy wear-resistant material, so the pump has good wear resistance and large flowing passage. It is applicable for conveying media such as sludge, ore slurry, coal slurry, sandstones containing big solid particles. The product is designed and manufactured by domestic and over sea advanced technologies. Besides the main impeller, the bottom of the pump is additionally provided with a set of agitation impeller which can spray the deposited sludge into turbulent flow, and therefore the pump realizes high-concentration conveying under the condition of no auxiliary device. The unique seal device can effectively balance the pressure inside and outside the oil chamber, so as to project the reliability of the mechanical seal to the maximum extent. The motor adopts various protective such as overheat protection, water inlet detecting projection, and can operate safely for a long term in harsh working conditions. The pump is applicable for pumping sand for building, silty sand, silt, tailing slurry, ore, iron sand ore, sediment in sewage treatment works, etc.   The whole machine is dry submersible pump, and the motor adopts oil chamber seal mode and is provided with mechanical seal inside, so that high pressure water and impurities and are effectively prevented from entering inner cavity of the motor.1.Besides the main impeller, there is the agitation impeller which can agitate the sludge deposited on the water bottom into turbulent flow and pump the sludge out.2.The trans-flux parts such as the impeller and the agitation impeller are made from high-hardness high chromium cast steel, have wear resistance, corrosion resistance and strong drainage capacity, and allow big solid particles to pass.3.The motor is submerged in water, is not limited by suction stroke, and has high   sludge suction rate and thorough desilting.4.The integral device is simplified, needs no auxiliary stirrer device or ejector device, and has simple and convenient operation and low total investment of the unit.5.The agitation impeller directly approaches the depositional surface, and controls the concentration through submerged depth. Under the condition of large medium proportion, an auxiliary device can be arranged to increase the concentration of the medium. Detailed Photos Product ParametersFlow50m3/h-2000m3/hHead10m-60mSpeed980rpm-1460rpmPower3kw-315kwDischarge distance200m-600mDredging depthwithin35mMax.flow particle dia.allowed10-56mm NO. Pump Type DISCH. DIA CAP Head Power Rotation speed Eff. Biggest particles discontinuous pass through (mm) (m³/h) (m) (kw) (r/min) (%) (mm) 1 ZJQA50-21-11 100 35 22 11 1460 48 21 50 21 60 20 2 ZJQA50-26-11 80 35 29 11 1460 48 13 50 26 60 24 3 ZJQA100-18-11 100 70 20 11 1460 55 21 100 18 120 15 4 ZJQA25-40-15 80 18 41 15 1460 35 13 25 40 30 39 5 ZJQA50-35-15 100 35 38 15 1460 47 13 50 35 60 32 6 ZJQA60-30-15 100 42 33 15 1460 50 13 60 30 72 27 7 ZJQA75-25-15 100 52 28 15 1460 51 13 75 25 90 22 8 ZJQA150-15-15 150 105 17 15 1460 56 21 150 15 180 13 9 ZJQA75-35-22 100 52 38 22 980 48 13 75 35 90 32 Use Conditions1.The power source is 50Hz/380V three -phase alternating-current supply, and the capacity of the substation transformator two to three times of the rated capacity of the motor.2.The temperature of the medium cannot exceed 60ºC, and the medium does not contain inflammable or explosive gases.3.The maximum weight concentration of the solid particles in the medium: the maximum weight concentration of the ash is 45% and maximum weight concentration of the slag is 60%.4.The submerged depth of the unit is not more than 20 meters, and the minimum submerged depth takes submerging of the motor as reference.5.The unit works in the medium vertically, and the working status is continuous.Packaging & ShippingCan be packed according to customer requirementsInstallation Instructions1.Preparation before Installation1)Carefully check whether the electric pump is deformed or damaged in the processes of transport, storage and installation and whether the fastening pieces and loosened or fallen off before starting.2)Check whether the cable is damaged or broken, if yes, replace the cable to avoid electric leakage.3)Check whether the power source device is safe and reliable and that the rated voltage should accord with the nameplate.4)Use a megohmmeter to check that the motor stator winding cold ground insulation resistance should not be less than 50 MΩ.5)Check whether the oil quantity in the oil chamber is appropriate and that the oil level of the unit in the vertical position should be flush with the oil filling openi
