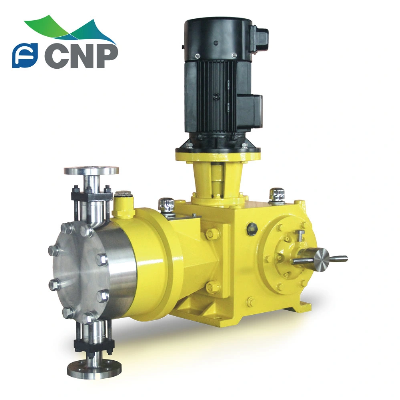

Hydraulic Dosing Pump Stainless Steel High Pressure Metering Pump

JMX series hydraulic diaphragm metering pump Technical parameters Maximum flow: 1100L/H Maximum discharge pressure: 19 Mpa Regulation ratio 10:1, steady-state accuracy: ± 1 % Inhalation elevation up to 2 M water column Medium temperature: -10 °C ~ 100 °C The maximum ambient temperature is +40 °C and the maximum elevation is 1000M. field of application Environmental protection, petrochemicals, chemicals, electricity, metallurgy, medicine, food and other fields, especially in the field of high precision, high pressure, high temperature outstanding performance application Environmental protection, petrochemicals, chemicals, electricity, metallurgy, medicine, food and other fields, especially in the field of high precision, high pressure, high temperature outstanding performance material quality PVC, PVDF, 316SS, 304SS Fluid EndPump head,    valve bodyValve seatValve ball    Isolating DiaphragmPlungerTampingSeal Ring    304SS304SS    316SS    304SS/ZirconiaPTFE    304+Ceramic    Fluororubber    PTEE/Fluororubber        316SS    316SS    316SS    304SS/ZirconiaPTFE    304+CeramicFluororubber    PTEE/Fluororubber    PVCPVCPVDFZirconiaPTFE    304+CeramicFluororubber    PTEE/Fluororubber    PVDFPVDFPVDFZirconiaPTFE    304+CeramicFluororubber    PTEE/Fluororubber    /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
