Waste Wahser and Washer Process Machine Disc Paper Pulp Thickener

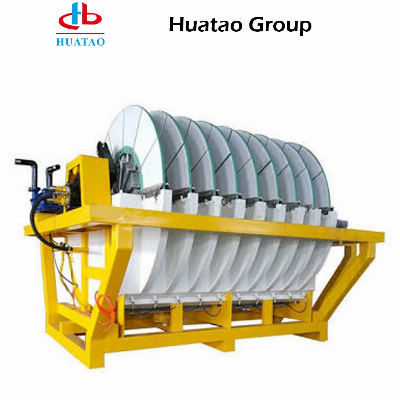

Multi-Disc Thickener in Pulper Production Process for Paper Mill  Product DescriptionThe Multi-Disc Thickener/disc filter is used for washing and thickening the low consistent pulp. It can also be used for recovering the fiber from the white water.Disc Thickener Features:As compared with traditional gravity dewatering equipment, this equipment has such merits as greater filtering area, taking up smaller floor and larger capacity. Being fitted with stainless steel sector disc and trough body can make pulp cleanliness higher.Multi-Disc Thickener Advantage:1. Used to wash and thicken low-consistency slurry.2. Combined disc-type filter drum increases the filter area greatly.3. Less space requirement, but large production capacity.4. Adopt stainless steel filter screen, long service life.Product ParametersTypeMPL25Used for recovery of white waterFilter Plate Diameter(mm)2500Filter Plate quantity (pc)4-12Filter Area of each plate (m2)7.5Main Rotor(KW)5.5-11Inflow White WaterConsistency (%)0.35-0.45Outflow consistency(%)3-5Wgite Water Flow(m3/m2h)1.6-4.0Used for pulp thickeningFilter Plate Diameter(mm)2500Filter Plate quantity (pc)4-12Filter Area each plate(m2)7.5Main Motor(KW)5.5-11Pulp OCC,Wood Pulp,Pulp Deinking,Straw PulpInflow Consistency(%)0.5-1.2Outflow Consistency(%)8-12Productivity(t/m2.d)0.7-1.2Production Workshop Other Pulp Equipments Our Professional Team                      /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
