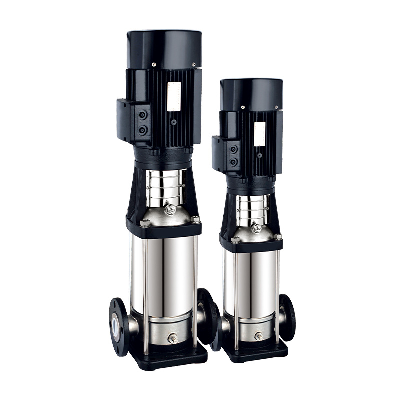

VERTICAL MULTISTAGE CENTRIFUGAL PUMPSCDL(F)Series is a Sheet metal Stainless Steel Vertical Multistage Centrifugal Pump offered by Huayang. The pumps are driven by standard electrical phase mounted motor. CDL(F) Series pumps are available in complete SS 304 & complete SS 316 material. Pumps are available in I Phase as well as III Phase.ApplicationCDL(F) Series has multifunctional products and can be used to transfer various medium from tap water to industrial liquids at different flow rates & pressure.Main applications include clear liquid transfer water treatment projects to reverse osmosis systems, Pressure boosting systems, High pressure water unit, Fire - fighting systems; Boiler feed applications, Spray irrigation etc. Main uses: High-rise buildings, fire protection, refrigeration systems and industrial, agricultural, hotel,>>> Working Conditions Thin, clean, non-flammable and non-explosive liquid containing no solid granules and fibers. Liquid temperature Normal type: -15~+70°c Hot water type: -15~+120°c Ambient temperature: up to +40°c Altitude: up to 1000mThe transmission medium:1, Non flammable and explosive medium, thin, clean, containing no solid particles or fibers.2, such as mineral water, softened water, pure water, thin sewage water, food oil and other light industry media.3, pump the main material for stainless steel, can be used in pumping mildly corrosive media.Product overview1. CDL, CDLF stainless steel stamping centrifugal pump is using technology manufacturing Denmark2. Hydraulic model is advanced, high efficiency and energy saving. Pump internal leaf adopts stainless steel stamping, smooth flow, avoid pollution two. Seal with wear resistant mechanical seal, no leakage.3. Motor using Y2 lead shell, import bearings, insulation level class F.4. The pump running smoothly. Low noise, the reliable quality, beautiful appearance, small size, light weight, convenient installation and operation, is an ideal green, environmental protection, energy saving water pump.Product features1. Hot and cold clean, non flammable and explosive, containing no solid particles or fibers of the liquid,2. The liquid temperature: -15Centigrade to +70Centigrade, +70 Centigrade to +115 Centigrade hot water., the temperature of the environment.3. The environment temperature: +40 Centigrade,4. The minimum entrance pressure curve: NPSH +0.5m.5. Head of safety margin of 0.5m.water pump,centrifugal pump,vertical centrifugal pump,submersible pump,multistage pump, high-pressure pump.Huayang Intelligent Technology Co., Ltd. is an enterprise integrating the research, development, production, sales and service of pumps. It is professional, dedicated, and concentrated on vertical, horizontal and immersed multi-stage centrifugal pumps, sewage submersible pumps and other products.Huayang vertical multi-stage centrifugal pump CDL(F) is one of our important products. The product has introduced foreign advanced technology, combined with the existing domestic advantages, and adopts standard vertical motor and quick-install mechanical seal.Our vertical centrifugal pumps have three major product features.All-copper motor with thermal protector, strong power and stable operation.Mechanical seal, no leakage, low noise and wear resistance.High-precision motor, surface anti-rust treatment, anti-corrosion, high torque and large flow.Vertical multi-stage centrifugal pumps can be directly used in water plant divisional water supply, farmland irrigation, aquaculture, chemical and pharmaceutical, etc. The products have been sold for many years and have been widely used in the market and praised by customers.As the source manufacturer of centrifugal pumps, we provide one-stop service.MotorFull-enclosed, air-cooled secondary standard motorProtection class: IP55Insulation class: FStandard voltage: 50Hz: 1×220-230/240V3×200-230/346-380V3×220-240/380-415V3×220-255/380-440VMotors of other voltages are available upon requestSingle-phase motors are available from 0.37 to 2.2kWTypical applicationCDL(F) is a multifunctional product that can transport a variety of different media from tap water to industrial liquids, suitable for different temperature, flow and pressure ranges.CDL is suitable for non-corrosive liquids, CDL (F) is suitable for mildly corrosive liquids.Water supply: filtration and transmission in water plants, water supply in districts in water plants, and pressurization in high-rise buildings.Industrial booster: process water system, cleaning system, high pressure flushing system, fire fighting system.Industrial liquid transportation: cooling and air conditioning systems, boiler feed water and condensing systems, machine tools, acid and alkali.Water treatment filtration system, reverse osmosis system, distillation system, separator, swimming pool, etc.Irrigation of farmland irrigation, sprinkler irrigation, drip irrigation, etc.Performance CurveAll curves are based on motor measurements at constant speed of 2900rpm or 2950rpm.The curve
