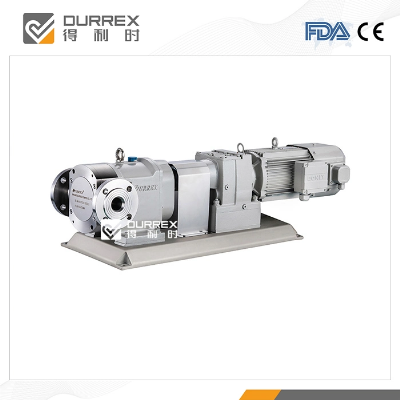

Industry Leading Sanitary Grade Rotary Lobe Pump with High Precision

Industry Leading  Sanitary Grade  Rotary Lobe Pump with High Precision  Sanitary grade lobe pump is one of the products specially developed by Durrex pumps company to meet the customers in the production process of high hygiene requirements. Working chamber has sanitary rotor, rotor locking nut O - ring, pump body without sanitary dead angle and Higher hygienic grade. Support CIP, SIP. The surface roughness is 0.2--0.8um, in accordance with 3A, FDA standards. Can be widely used food, medicine and other materials with high requirements for hygiene level.Applications:Food grade rotor pump can be used for all kinds of medium, high viscosity and high solid content of material transportation. Lobe pumps are widely used in the production process of sugar, chocolate, dairy products, various syrups, concentrated fruit juice, jelly, yogurt, honey, ice cream, moon cake stuffing, flour slurry, soy protein, meat stuffing, condiments, tomato sauce, hot pot base material, bean paste and other food.We are specialized in the production of rotor pumps and homogeneous pumps. The production capacity reaches 18000 units/year. Our pumps can transfer medium with viscosity up to 1,000,000cps, with a maximum flow rate of 400m3/h (Capacity of 30L/r). In the food industry, we have cooperated with Mars, Nestle, Karft, Danone, Ferrero, Mayora, Kewipe, Heinz, Candy Tech, Lotte, Colacao, Cadbury,  Fonterra, Yili, UHA, Buhler, Glic, Perfetti Cargill, Yihaicarry and so on for many years.Product features:1. Gap is kept between the rotors and rotors & pump body, no friction, long using-life.  2. Simple assembling and disassembling, easy to maintenance and clean, less easily-damaged parts.  3. High efficiency and energy-saving, low failure, reliable sealing and low noise.   4. In the same type pump, different type rotor can be interchanged. 5. Capable to pmp the viscous medium from 1cp to 2million cps.  6. Capable of pumping mixture of gas, fluid and solid medium.  7. Equipped with inverter, the flow can be adjusted as requirement of end-user.   8. Flange, screw or clamp connection can be selected as required.  9. Higher hygienic grade, support CIP, SIP. The surface roughness is 0.2--0.8um, got 3A, FDA certification.  10. Hygienic safety valve is built-in structure. Structure drawing and main material   DescriptionMaterialQuantityPump cover304 /304L /316 /316L1Pump body304 /304L /316 /316L1RotorRubber /304 /304L /316 /316L2Main shaft316-316L /42CrMo1Sub-shaft316-316L /42CrMo1Mechanical seal seat304 /304L /316 /316L2Mechanical sealSIC /Tungsten carbide2O-ringFKM /FFKM/ EPDM /TFE /PTFE,etc.1Rotor lock nut304 /304L /316 /316L2Lip sealNBR /FKM3WORKING PRINCIPLE OF LOBE PUMPTwin-Rotary pumps are multi-functional and bi-directional positive displacement pumps, produced with fine technology. The manufacturing engineering and precision of the pumps approach the advanced level of the world. Rotary pumps use synchronic rotors, driven by a pair of synchronic gears in the gear box. Transmitted by the main shaft and the sub-shaft. The rotors move synchronically in counter-clockwise directions, which, consequently, varies the pump capacity and builds up high vacuum capacity and emission pressure. It is particularly suitable to pump sanitary medium, high-corrosive and high-viscous medium.    Technical parametersTypeCapacity fortri-imepller rotor(L/r)Rotation speed(r/min)Flow(m3/h)Discharge Pressure(MPa)Standard I& O DN(mm)Enlarged I& O DN(mm)WeightBare pump(kgs)15TLS12-0.5C0.0410-7200.51.215253025TLS12-2C0.1510-72021.225404040TLS12-5C0.3210-50051.240505050TLS12-10C0.6510-500101.250658060TLS12-15C1.110-500151.2658012065TLS12-20C1.7410-500201.2658020075TLS12-30C2.610-500301.28010023080TLS12-40C3.6510-500401.2100125260100TLS12-60C5.210-500601.2125150400125TLS12-80C6.810-500801.2125150450140TLS12-120C9.810-4001201.2150200600150TLS12-150C12.810-4001501.2150200680200TLS12-200C1610-3002001.2200250780250TLS12-300C2010-3003001.2250300900300TLS12-400C3010-3004001.23003501100........................   Installation drawing and weightHorizontalTypeAAABBBCDEFMNstandard sealwater flush seal15TLS12-0.5C1401706799.541.5 Φ17209251425TLS12-2C18522010814450.561.5Φ225098618.540TLS12-5C210240114154.56071Φ285011182450TLS12-10C2462841251757182Φ3850130103360TLS12-15C27031013817892103Φ45801331439.565TLS12-20C300338155198105117Φ5080138.51444.575TLS12-30C334372188244103118Φ5580160164980TLS12-40C362400199250112.5130.5Φ60801641853100TLS12-60C350410220280136151Φ70110178.52062.5125TLS12-80C376430255322146161Φ751101932067.5140TLS12-120C410480260365163.5183.5Φ951402312586150TLS12-150C450520290386175197Φ110140245.528100200TLS12-200C450520290386200222Φ110140245.528100TypeHAHBHCHDKLALBBear pump estimatedwight (G.W.:kgs)FlangeClampScrew15TLS12-0.5C709416918Φ142521801601602025TLS12-2C8411922220Φ143452452202204040TLS12-5C9413324520Φ143802752602605050TLS12-10C109.2515830325Φ184263203083088560TLS12-15C137.520037030Φ1850535035035015065TLS12-20C140207.5399.525Φ1854340040040017575TLS12-30C148224434.5
