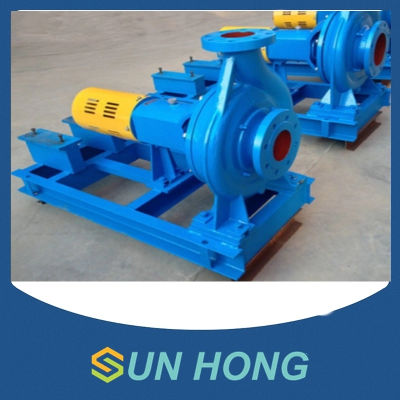

Single Stage Medium Consistency Pulp Pump

Product DescriptionMiddle consistency Pulp pump is suitable for concentration of 6%-8%(chemical pulp, semi-chemical pulp, mechanical pulp and chemical mechanical pulp, wasto pulp and chermical pulp fiber,the dirty mudfiber) ,temperature 120 ºC.head: 10-70 m.quantity 36-800 m3 / h.lt adopts spiral centrifugal single-vane impeller,has vory good performance through the solid medium, suitable for liquid, mud and large solid and thick pulp and continuous pumping of long fiber pulp. Main FeaturesMain FeaturesUnique design of spiral contritugal impeller,wide spiral flow,high efficiency,no jam condition,the advantages of the winding suitable for conveying large solid volume,long fiber,loose,fragilornaterial.Application:It is particularly suitable for conveying loose material and vulinorable material in light industry. such as sugar bagasse,brewery dipping tank of whoat, wine vinasse,tomatoes,potatoes.transmittod and aquatic products such as fish, shrimp, etc.ApplicationPaper mills• Paper pulp• Mining water• Waste pulp• Paper stock• Chemical slurries• Sugar refining• Cooling water• Papermaking• Chemical industry• Food industry• Circulation water• Water supply• Waste water treatment• Raw water• Sugar syrup• Molasses• Drinking water• Filtrate• Other industriesStructureOur Advantages1. Steel castingFree from adhering sand, scale, cracks, hot tears or other imperfections.2. Mechanical SealMechanical seal is made by suitable material, and can endure abrasivewear, corrosive.3. Coupler and bearingMore bearings and coupler to ensure pumps run smoothly.4. MotorUse famous brand electrical motor.Packaging & ShippingPackagingProducts will be packaged according to their shapes, weight, transport distance and transport modes. Large machines will be packaged in sections. Every part of export machinery will be in standard export wooden package, waterproof film, straw rope, carton box ,etc, which will ensure the intactness of the products.Delivery1. sea transportation is from qingdao seaport or other ports.2. the delivery time is decided by your needed machines or machine parts. But it also follows your needs.Our Factory & EquipmentWe have many different type of pump such as Centrifugal Pump,Double Flow Centrifugal Pump,Low Pulse Pulp Pump,Middle Consistency Slurry Pump,Water Ring Vacuum Pump. Production processing is from 3D printing→make mould→casting,machining→dynamic balance test→assembly→performance test→packing/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
