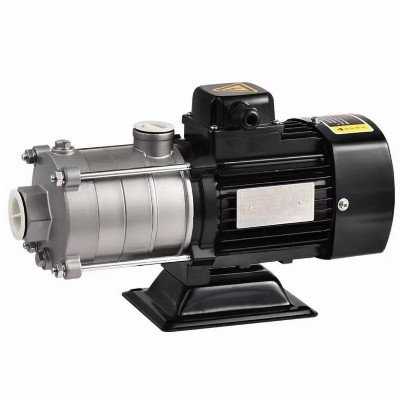

Stainless Steel Portable High Pressure Water Pump Family Home Domestic

CHLF, CHL, CHM, CHLF(T) are non-self-priming light horizontal multistage centrifugal pump. They are efficient, low noise, little corrosive tolerance, compact structure, good looking, small volume, light weight, etc.Product DescriptionWorking Principle:CentrifugalMain applications:  Water, ChemicalDriver:Electric motorPower Specs:220-240V single phase,  220-240V/380-415V three phase50Hz or 60HzMax.permissible fluid temperature:-15°C to +70°C(hot water type max 110°C)Type of connection:Inlet thread, hose, flangeInstallation position:HorizontalCasing parts material:Stainless steel 304 or 316Shaft seal type:  Mechanical sealMaximum drive rating: 4KW(6HP)Maximum caliber:  50mm(2inch)Maximum discharge-side pressure:0.6MPa(6bar)Maximum head: 60m(196.8ft)Flow rate range:  0.5-28m3/h(2.2-123.20US.GPM)Product FeatureIntroduction1. Impeller and wet parts are made of stainless steel.2. It's with the merits of small size, light weight, compact structure, low noise, easy to install and used.3. Horizontal multistage non-self-priming centrifugal pump, attached with long shaft electric motor.4. Axial inlet and radial outlet.5. CHL flow passage components stainless steel 304 or 316, CHLF is stainless steel 304 or 316 segmental type pump body,        CHLF(T) is segmental type pump body and discharge are made of cast iron.Liquid temperatureNormal temperature type:-15°C to +70°CHot water type: -15°C to 110°CAmbient temperature: up to +40°CMax.operation pressure: 10 barMax. Inlet pressure is limited by max. Operation pressureWorking conditionsCHL, CHLF and CHLF(T) type pump are mainly used in industrial field:Air-conditioning systemCooling systemIndustrial cleaningWater treatment (Water purification)AquicultureFertilizing / metering systemEnvironmental applicationOther special applicationsApplicable mediumThin and clean non-flammable and non-explosive liquid without solid granules and fibers.Mineral water, soft water, pure water, edible vegetable oil and other light chemical mediums.When the density or viscosity of to-be-conveyed liquid is larger than that of water, it is necessary to select a driving motor of high-power.Whether a specific liquid is suitable for the pump depends on many factors, among which the most important ones are chlorine content, PH value, temperature, solvent and oil content.Product ParametersDetailed PhotosApplication Integrated pump control solutionHorizontal SS variable frequency pumpProduct advantage:High quality and famous brand bearing,mechanical seal,capacitor,St. Steel etc.Featuring simple operation, good reliability, low noise and high performanceApplication:Water treatment,Water supply,Industrial boosting,Industrial liquid conveying,Irrigation    Company ProfilePackaging & ShippingFAQQ1: What is your product range ?A: We have the ability to manufacture water pumps of various materials, VFD,valves,etc.And our pumps are including slurry pumps, multi-stage pumps, pipeline pumps,sewage pumps, etc.Q2: Can you produce according to the samples ?A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.Q3: Is OEM parts available ?A:Yes, please send me the detailed drawing. Different materials and colors are available.Q4: how can we guarantee quality ?A: We Always a pre-production sample before mass production;Always final inspection before shipment;Q5: What are your advantages ?A: Rapid development of new products, full range of products, professional service timely quotation and reply promptly, strict quality inspection, strong in after-sales problem solving./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
