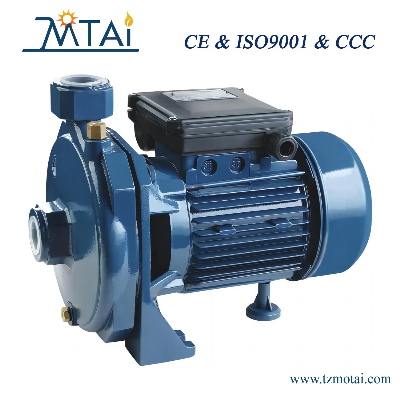

Electric Agricultural Irrigation  Centrifugal Casting Iron Water Pump CPM

Product DescriptionCPM Series Centrifugal PumpCPM Series Centrifugal Pumps are single stage centrifugal pumps, can be used to transfer clean water or other similar water in physical and chemical properties.It is suitable for industrial use and urban water supply, pressure boosting for high buildings and fire system , garden irrigation, long-distance water transfer, heating ventilation and air controlling, circulation and pressure boosting for cold and hot water, and supporting equipment etc.  Application:                    Clean water without abrasive particles/Non-aggressive liquid.Domestic use.In particular for deliverying water in combination with small pressure sets and for irrigation.Installed in enclosed place, or at least protected against inclement weather.Operating Conditions:       Suction lift up to 9mtLiquid Temperature up to +40ºCAmbient temperature up to +40ºCMax. working Pressure: 6 barMotor:                             2 pole induction motorSingle-phase, 50/60HzProtection IP 44With capacitor and thermal overload protectionMaterial:                          Pump body: Cast IronMotor Support: Aluminum/Cast IronImpeller: BrassMotor Shaft: Stainless Steel or CS45#Mechanical Seal: Ceramic-Graphite.Motor winding: copperTechnical  Data  TYPEPower KwPower HPMAX. FLOWMAX. HEADInlet/OutletMAX.SUCTN.W.PACKING DIMENSIONCPM1300.370.560L/min22M1"x1"8M8.9KG28x19x24cmCPM1460.550.75100L/min25M1"x1"8M11KG32x20x25.5cmCPM1580.751120L/min33M1"x1"8M12KG32x21x27cmCPM1801.11.5130L/min38M1"x1"8M20KG36x26x32.5cmCPM1901.52150L/min42M1"x1"8M21KG36x26x32.5cmCPM2002.23160L/min46M1"x1"8M23KG36x26x32.5cm  CPM PUMP EXPLODED VIEW NO.DESCRIPTIONNO.DESCRIPTIONNO.DESCRIPTIONNO.DESCRIPTION1"O" ring 9Mechanical seal17Housing25Stand2Discharge plug10Bolt18Terminal board26Wound stator3Pump body11"O" ring19Capacitor27Rotor4Nut12Pump support20Terminal box cover28Split ring5Snap ring13Drops guard21Screw29Back cover6Washer14Bearing22Screw30Bolt7Impeller15Snap ring23Cable presser31Fan8Key16Bolt24Fairlead32Fan coverCPM PUMP CURVINGPacking & Shipping :To avoid damp, inner layer wrapped with plastic paperTo lessen vibration, middle layer filled with foamTo avoild squeeze, motor are packed with plywood or wooden caseCustomized package is also acceptPAINTING COLOR CODEADVANTAGE:Pre-sales service: •We are a sales team, with all technical support from engineer team.•We value every inquiry sent to us, ensure quick competitive offer within 24 hours.•We cooperate with customer to design and develop the new products. Provide all necessary document.After-sales service:•We respect your feed back after receive the motors.•We provide 1years warranty after receipt of motors..•We promise all spare parts available in lifetime use.•We loge your complain within 24 hours./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
