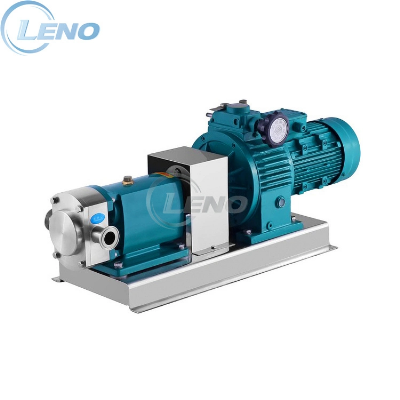

Food Grade Stainless Steel Toothpaste Roots Booster Vacuum Pump

Operation PrincipleRotor pump is also named rotary lobe pump, three-lobe pump, etc. When the 2 simultaneous reverse rotating rotors(with 2-4 gears)revolve, it produces suction force at the inlet(vacuum), which intakes the material delivered. The 2 rotors divide the rotor housing into many smaller parts and revo-Ive in the sequence of a→b→c→d. When it revolves to position a, only housing I is filled with medium. when it revolves to position b, housing B encloses part of the medium, when it goes to position c, housing A encloses medium, and finally it goes to position d, then housing A, B and II are interlinked and the medium is transported to the outlet. As this process is repeated, medium (material) is transpor-ted continuously.Application:Applicable to the fields of food, dairy, beverage, pharmacy, cosmetic etc industry. a. Chemical Industry: Fat, Dissolvent, Resin, Paint, Pigment, Oil Agent etc. b. Food Industry: Yogurt, Ice Cream, Cheese, Soft Drink, Fruit Jelly, Ketchup, Oil, Syrup, Chocolate etc. c. Daily Chemicals: Facial Foam, Hair Gel, Hair Dyes, Toothpaste, Shampoo, Shoe Polish etc. d. Pharmacy: Nutrition Liquid, Chinese Traditional Patent Medicine, Biological Products etc.Profile typeSanitary stainless steel rotor rotary lobe pump for syrup shampoo chocolate viscositymaterialSS304 or SS316LCapacity0-100T (Customized)Pressure0-8barViscosity1-1000000pasrotors typebutterfly rotors/Trefoil rotortemperature0-200 celsius degreerelief valveNO0-3barmechnical seal typeSinlge mechanical sealDouble flushed mechanical sealconnection typeClampUnionFlangeInlet outlet directionLeft and right or Up and downJacketNohotwatermotor typeNormalPlanetary inverter Speed0-1000RPMTechnical Parameters ModelCapacity/Per centum rotate (L)Speed(RPM)Flow(L/H)Power(KW)LNP-3R3L100-500300-8000.55LNP-6R6L100-500650-16000.75LNP-8R8L100-500850-21601.5LNP-12R12L100-5001300-32002.2LNP-20R20L100-5002100-54003LNP-30R30L100-5003200-64004LNP-36R36L100-5003800-76004LNP-52R52L100-5005600-110005.5LNP-66R66L100-5007100-140007.5LNP-78R78L100-5009000-180007.5LNP-100R100L100-50011000-2200011LNP-135R135L100-50015000-3000015LNP-160R160L100-50017000-3400018.5LNP-200R200L100-50021600-4300022We can customize the equipment according to customer requirements.1.Screw cap   2.Pump cover   3.Seal ring   4.Cap   5.Seal ring   6.Rotor   7.Pump cavity   8.Mechanical seal (stationary ring)   9.Mechanical seal(moving ring)   10.Seal ring   11.Bearing sleeve   12.Bearing cover   13.Seal gasket   14.Rubber oil seal   15.Bearing seat   16.Seal gasket   17.Bearing   18.Upper shaft   19.Lower shaft   20.Helicalgear   21.Stop washer   22.Cap   23.Screw   24.Pump body   25.Bearing  26.Rubber oil seal   27.Seal gasket    28.Bearing cover    29.PinQ1Are you trade or manufacturer?AWe are a factory with an international sales company specialized in support for global distributors.Q2Can you provide instant technical consulting services?AWe are able to discuss technical details and offer suggestions over the phone in English.You can get the answers in minutes, instead of days.Q3What's the difference between Ready-To-Ship and Customized products?ASome of RTS standard products are in stock and ready to ship in 2-3 days.We can also quick design and make the drawings for customer requirements, then begin the production.Q4What is the payment terms?AWe accept Alibaba Trade Assurance Order, also can T/T and L/C.Q5How to choose the shipment way?AIt is according to the order quantity, delivery time, costs and customs policy etc. (Or decide by customers)Q6How about the after-sales service?AFast after-sales support. Our products have a one-year warranty and free permanent consulting services./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
