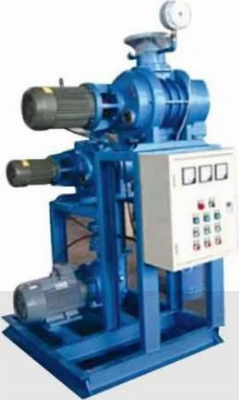

High Efficiency Roots Vacuum Pump

 Product DescriptionRoots pump is a kind of vacuum pump without internal compression. It is a vacuum pump that realizes air extraction by moving gas under the pushing action of synchronous and reverse rotation of a pair of "8" shaped rotors in the pump cavity. Generally, the pumping rate is large and the power of the motor is small, so the front pump is required to pre pump. After the front pump reaches the specified vacuum degree, start the roots vacuum pump to improve the pumping speed and vacuum degree. Its structure and working principle are similar to roots blower. During operation, its suction is connected with the evacuated container or the main pump of vacuum system. There is no contact between rotors of Roots vacuum pump and between rotors and pump casing.Our AdvantagesThe running parts in the pump have no friction, no lubrication, and there is no oil in the pump cavity, so a clean vacuum can be obtained.two leaf involute cycloid profile, high-precision machining to ensure smooth and quiet operation.the gas in the pump chamber flows vertically, which is conducive to the discharge of dust and condensate in the pumped gas.. The high-strength rotor with complete symmetry and precise dynamic balance operates stably and reliably.high precision gear, imported bearing, low vibration and noise.the new omni-directional three-dimensional water-cooling jacket design can effectively cool the pump body and greatly prolong the service life of the pump.the overflow surface can be plated with shackles, Hastelloy and PTFE, which can adapt to corrosive environments with different strengths.it is convenient to form roots vacuum unit with liquid ring vacuum pump, rotary vane vacuum pump and dry vacuum pump. Typical Use------Oil and gas recovery.    ------Biological medicine ------Food Processing ------ Single crystal furnace------Vacuum forming ------Vacuum flame refining ------Electronic photovoltaic. ------Semiconductor synthesisProduct ParametersTypePumping Speed L/SMaximum allowable differential pressure (Pa)Pump Speed(RPM)Inlet Diameter(mm)Outlet Diameter(mm)Motor Power(kw)ZJB-70708000285080501.5ZJB-15015060002850100803ZJB-300300500029001501004ZJB-600600400029002001505.5Z7.5ZJ-120012003000290025020011/15ZJ-250025002600290030025022ZJ-375037502600145035035030ZJ-500050002600145040040045   Detailed Photos General Manager SpeechDeeply cultivate the vacuum technology, and research,develop and manufacture the vacuum equipment to provide the best solution in the vacuum field and make the vacuum application easier.Company ProfileShandong Kaien Vacuum Technology Co., Ltd. is a high-tech enterprise integrating R & D, production and operation of vacuum equipment. The company has strong technical force, excellent equipment and considerate after-sales service. The product manufacturing process is managed in strict accordance with IS09001 quality system. It mainly produces and sells screw vacuum pump, roots pump, claw vacuum pump, runoff vacuum pump, scroll pump, water ring vacuum pump, vacuum unit and other vacuum systems.New plant planningThe company's products have been for a number of food, medicine, refrigeration, drying plants and a number of transformer related equipment manufacturers for vacuum equipment. The products are widely used in vacuum drying and dehydration, kerosene vapor phase drying, vacuum impregnation, vacuum metallurgy, vacuum coating, vacuum evaporation, vacuum concentration, oil and gas recovery, etc. High precision machining equipmentThe company cooperates with colleges and universities to research and develop core technologies, and owns dozens of independent intellectual property patents. Adhering to the basic tenet of quality, reputation and service, the company takes leading-edge technology of vacuum pump as its own responsibility, and wholeheartedly serves customers of vacuum equipment application in various industries with rigorous working attitude and professional working style. Product quality wins consumer cooperationISO9001/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
