Screw Vacuum Pump of Air Cooled Series

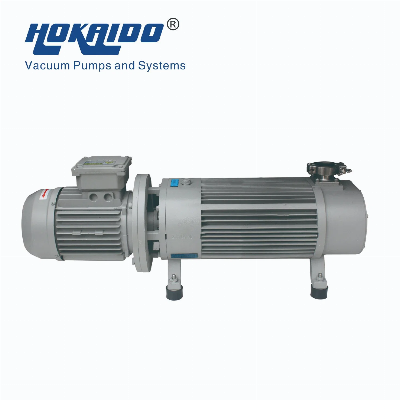

Dry Screw Vacuum Pump RSB020Product DescriptionDry screw vacuum pump, is the use of a pair of screw, made in the pump shell synchronous high-speed reverse rotation of the effects of the suction and exhaust and suction device, two screw fine dynamic balancing correction, and is supported by bearings, is installed in the pump shell, between screw and screw has a certain gap, so the pump work, no friction between each other, smooth running, low noise, Working chamber without lubricating oil, therefore, dry screw pump can remove a lot of steam and a small amount of dust gas occasions, higher limit vacuum, lower power consumption, energy saving, maintenance-free and other advantages.There is no medium in the working chamber, which can obtain a clean vacuum.No clearance between rotating parts, high speed operation, small overall volume.There is no compression in the gas, suitable for extraction of coagulable gas.Can remove a lot of steam and a small amount of dust gas occasions.High vacuum, the ultimate vacuum up to 1 Pa.Screw material is high strength special material, material density, wear resistance, stable performance.No friction rotating parts, low noise.Simple structure, convenient maintenance.Wider range of use: corrosive environment can be used.No oil consumption, no water.Pump gas directly discharged from the pump body, no pollution of water, no environmental pressure, more convenient gas recovery.It can be composed of oil-free unit with Roots pump and molecular pump.Product ParametersProduct Model50/60HzRSB020Pumping Speed50Hz18m³/H60Hz22m³/HUltimate Pressurembar0.03Inlet Diameter KF40Voltage50Hz200-240/345-415V60Hz220-275/380-480VMotor PowerkW1.5Rotate Speedr/min2900/3500Noise LeveldB72Cooling Mode Air CoolingNet Weightkg48  Detailed PhotosInstallation Instructions CertificationsCompany Profile/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
