CZ Standard Chemical Electric Fuel Pump Oil Pump

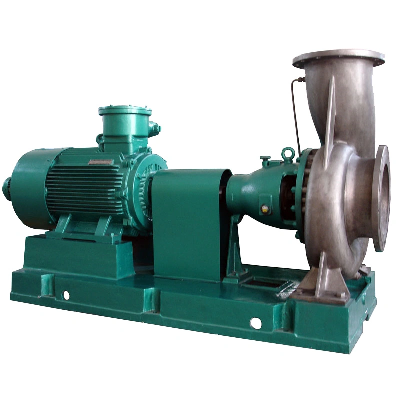

CZ Series Chemical Process Pump The pumps of series CZ are horizontal single stage, single suction,centrifugal,process pumps. Their dimensions and performance are in conformity with DIN24256/ISO2858. Type CZ standard chemical pump has the characteristics of type IH standard chemical pump.Its indexes of efficiency and cavitation performance exceed that of IH pump. It can make an exchange with single pump of these two types. Product NameCZ series chemical process pumpMaterialSS304,SS316, SS316L,CD-4MCu, SS904, SS904L,Duplex SS, Titanium and hastelloy etc.StandardISO, CEFlow rate0.5 to 2000m3/hHeadUp to 160mVoltage220V/380V/415V/460V or as customer requiredDesign pressure1.6MPaWorking temperature-40ºC to +200ºCWarranty12 monthsApplilcationHandling of cold or hot, liquids neutral or corrosive liquids, clean liquids or cleans containing solids, particularly in the chemical and petrochemical industries, refineries, the pulp and paper industry, the sugar industry.Design Characteristic CZ series standard chemical flow process pump use enclosed impeller that diameter of axle enough,stable and reliable running. For balance the radial force, some pump body is designed twin-volute type. "Back pullout" structure is used in design. Hanger, include shaft, impeller form an assembly part. The length shaft coupling used. Repairing it need not remove the line and motor,it's very convenient. The force at shaft gland is balanced by balance hole at back blade of impeller. Single and double terminal face mechanical seal are used. When the work temperature ≥ 80ºC, the hydrocooling bearing bracket stand is used. If you have any others pump type require, please free contact us.FAQQ:Can you supply pump qualified with ANSI and ASME standard?A:Yes, our pump compliant with ISO / ASME/ANSI standard.Q:How to customize pumps and mechanical seals ?A:Customers could send us application data, we will select suitable pump and seal types, or client could send us drawings, We are well in OEM and ODM.Q:How can I pay for my items? What is the payment you can provide?A:Usually by T/T, 30% down payment once PI confirmed, the balance will be paid after inspection and before shipment. TT or L/C at sightQ:How long is warranty?A:1 year for main construction warranty.Q:How long is production lead time?A:Normally 15 working days. If client need urgently, we have a huge spare parts stock, we could finish assembly and testing in 7 days.Q:What is the shipping terms you can provide?A:Depnends on customer's requirements, we can provide different transportantin terms, such as EXW, FOB, CIF.Q:Who is in charge of after-sales?A:SUNPACE has professional after sales service team, we will follow up the client's comments and suggest them good solutions. Solve client's problems and keeping the clients profit.Q:Who is in charge of maintenance?A:Local agent. If pump running has any problem on site, our local agent will arrival the plant within 24 hours Send message  Get product Offer & Brochure!!! ↓↓↓/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
