12.5kw Eco-Friendly Industrial Side Channel Blowers for Electroplating Tank

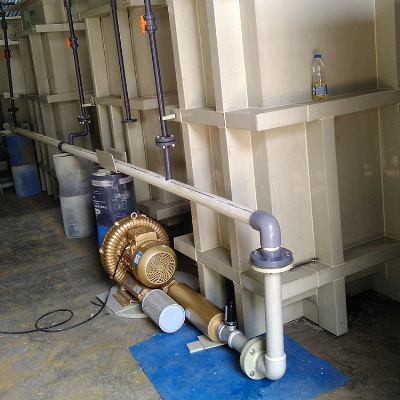

Product ParametersProduct Name12.5KW Eco-friendly Industrial Side Channel Blowers for Electroplating TankModel No.GHBH 017 36 1R9Frequency50Hz60HzRated Power12.5kW14.5kWRated Voltage345-415△/600-690Y(V)380-480△/660-720Y(V)Rated Current28.0△/16.2Y(A)29.0△/16.7Y(A)Max Airflow1050m³/h1250m³/hMax Vacuum-290mbar-270mbarMax Pressure280mbar260mbarSound74db(A)79db(A)Weight116kg116kgProduct FeaturesGOORUI Side channel blowers are maintenance-free:·External, permanently lubricated bearings·Contactless rotating impellers·Fan-cooled motorsGOORUI Side channel blowers are user-friendly:·Weight-optimised design through aluminum pressure casting parts·Possibility for a vertical or horizontal installation·Suitability for converter operationGOORUI Side channel blowers are environmentally friendly:·Oil-free operation·Low energy requirement·Low noise emissionGOORUI Side channel blowers can be used world-wide:·50/60Hz voltage range motors of the Iso class F·Protection type IP55 with an integrated thermal protection switch (standard)·CE, TUV, RoHS, CCC and ISO9001 certificationsPerformance CurvesDimensionsApplicationGOORUI Side Channel Blower Applications For Electroplating TankAccessoriesWe also have some parts for your application, if you need, welcome to tell me.Air filter: Filter the dust particles, apply to a bad environment.Silencer: reduce blower noise 5-10db,  apply to a quiet environment.Pressure relief valve: Control gas pressure, prevent excessive pressure, damage the machine.Installation InstructionsInstructions:1. It should be placed in a relatively stable place, and the surrounding environment should be clean, dry and ventilated.2. The direction of rotation of the impeller must be consistent with the direction of the pointed tip marked on the fan cover.3. When working, the working pressure should not be greater than 8 kPa, so as to avoid excessive heat generation of the air pump and damage to the air pump caused by motor overcurrent.4. It is strictly forbidden for solid, liquid and corrosive gas to enter the pump body.5. The filters and silencers at both ends of the air inlet and outlet should be cleaned in time according to the situation to avoid clogging and affecting use.6. The external connection of the air inlet and outlet must be connected by a hose (rubber tube, plastic spring tube).Precautions:1. Flat washers and spring washers must be used to tighten the screws.2. It is best to use rubber buffer rubber to bear the weight of the vortex air pump, especially the high-power vortex air pump, which is indispensable.3. For some occasions that require noise, a silencer can be installed to reduce the noise (generally down, about 5 dB), the silencer is installed at the end of the inlet duct or outlet duct.4. For some occasions with high requirements for noise, you can add a layer of silencer cotton according to the conditions of the machine itself to meet the noise requirements on site. For details, please consult our customer service.5. When using silencing cotton to silence the sound, pay attention to the distance between the vortex air pump and the box, pay attention to the ventilation and heat dissipation of the vortex air pump, and pay attention to using rubber cushioning to bear the weight of the vortex air pump. According to the picture, you need to consult customer service.6. The air inlet and outlet of the vortex air pump For pipe connection, hose connection should be used to isolate vibration. Packaging & ShippingShipping way: By sea or By air or By your agent in China.Delivery termsDelivery timeCIF by sea or air freight termsFOB SHENZHEN/GUANGZHOUEX-WORK TERMSDDP/DDUDHL/FEDEX/UPS courier door to doorOther delivery terms are negotiable.In stock blower: 2-3 days after paymentOut of stock blower: 7-15 days after order confirmed.Special blower need to check specific   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
