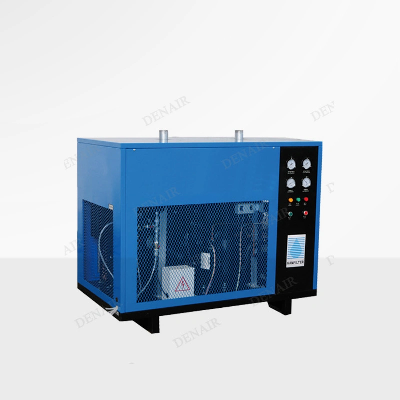

High Inlet Temperature Air-Cooling Refrigerated Air Dryer

High Inlet Temperature Air-cooling Refrigerated Air Dryer Advantages1.Ripple pipelines of the heat exchanger increase the using rate of cooling air. 2.Evaporator is made from laminose copper pipeline with aluminum flake, high efficiency and low energy consumption. 3.Good drainage system, adopts 3 gardes for draining, drain out lots of condensate water and oil, so as to keep clean and dry compressed air. 4.Easy for installation and free-maintenance. 5.Condenser made from fin copper, good heat exchanging rate without freeze and jam.High efficiency Refrigerated Air Dryer:Inlet temperature: High inlet temperature≤ 80CCooling method: Air-coolingAmbient temperature: ≤ 38CDesign dew point: 2 ~ 10CRefrigerant: R22 or Environmentally friendy R407Inlet pressure: 0.6-1.0MpaPressure drop: ≤ 0.02MPaThe Technical Parameter Of High Inlet Temperature Air-cooling Refrigerated Air DryerModelCapacityVoltageCompressor PowerFan PowerAir ConnectionWeightDimensionNm3/minV/HZHPKWWKGL(mm)W(mm)H(mm)DAD-1HTF1.2220/5010.8590ZG150630450640DAD-2HTF2.4220/5010.8590ZG180700450830DAD-3HTF3.8220/501.251.25140ZG1.5105850500920DAD-6HTF6.5220/501.51.5180ZG1.51508805501020DAD-8HTF8.5220/502.51.8180ZG1.51608805501020DAD-10HTF10.7380/5032.52*140ZG224011806701080DAD-13HTF13.5380/5032.52*140ZG226011806701080DAD-15HTF18380/503.632*140DN6531013607101220DAD-20HTF23380/50544(2)*180DN8040013607101220DAD-25HTF28380/5064.54(2)*220DN8045016507501290DAD-30HTF33380/507.56.56(3)*250DN10078016707501575DAD-40HTF45380/50110.58.86(3)*250DN10082020009501740DAD-50HTF55380/501210.26(3)*450DN125900235010501910DAD-60HTF65380/5015138(4)*180DN1251100255011001940DENAIR FactoryDENAIR ExhibitionDENAIR Global CustomersDENAIR Air Compressor PackagingFAQQ1: Are you factory or trade company?  A1: We are factory.Q2: What the exactly address of your factory? A2: Our company is located in No. 6767, Tingfeng Rd. Jinshan District, Shanghai 201502, China And our factory is located in No.366,YangzhuangBang Street,Pingxing Rd.,Xindai Town,Pinghu,Zhejiang Province, China Q3: Warranty terms of your machine? A3: Two years warranty for the machine and technical support according to your needs.Q4: Will you provide some spare parts of the machines? A4: Yes, of course.Q5: How long will you take to arrange production? A5: 380V 50HZ we can delivery the goods within 10 days. Other electricity or other color we will delivery within 22 daysQ6: Can you accept OEM orders? A6: Yes, with professional design team, OEM orders are highly welcome/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
