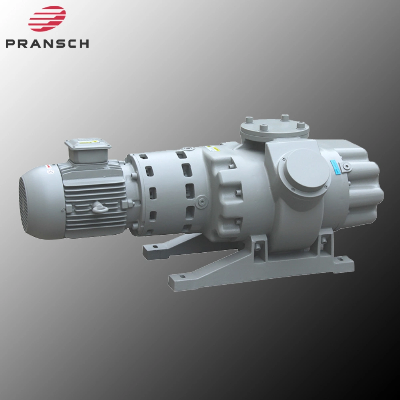

Mby2000 Roots Vacuum Pumps for Vacuum-Drying

MBY2000 Mechanical Boosters / Roots Vacuum Pumps Our MB-C, MB-E, and MB-Y mechanical vacuum booster are oil free vacuum pumps that are running together with the backing pumps for all rough and high-vacuum applications where large pumping speeds are needed. Our vacuum boosters operate totally contact-free and with no sealing fluids such as oil or water exiting in the vacuum chamber. MB-Y vacuum boosters are equipped with bypass valve.EconomicalDue to the large number of available models, the pumping speed and ultimate vacuum can be customized exactly according to specific processes. The high pumping efficiency ensures further increase in the economy of operating costs.Safe operationTried-and-tested engineering technology together with a robust design enables safe operation to happen. The MB-Y series' integrated bypass valve allows the vacuum boosters to operate at a high pressure level. Technical data50HZMBY2000Pumping Speedm3/h2000Ultimate pressurePa0.05Extreme full pressurePa0.5Max.Differential pressurePa5000In and out of calibermm150Max. of zero flow compression ratemax≥50SounddB(A)75Nominal motor ratingKw7.5Motor synchronous speedr/min3000Cooling model"natural air coolingWeightKg465Remmend backing pump models"SRV0630Application RangesMetallurgySimulation chambersPackaging industryFreeze/vacuum-dryingThin-film technologyElectron beam weldingChemistry and process technologyIndustrial leak detection systemsSteel degassingLoad-lock chambersvacuum impregnationvacuum degassvacuum pre-discharginggas exhaustingGlass and wear protection coatingDecorative coatingVacuum furnacesSpace simulation chambersfor the processes in vacuum distillation, vacuum concentration and vacuum drying in chemical industry, medicine, food and beverage, light industry and textile industry /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
