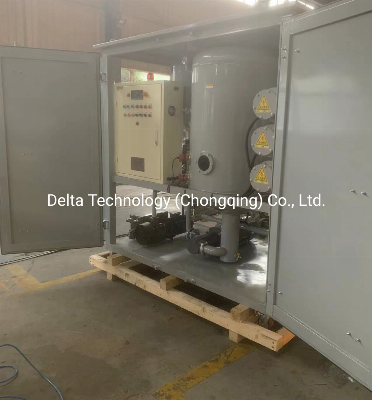

Zja China Oil Purifier for Purifying Transformer Oil

ZJA China Oil Purifier for Purifying Transformer Oil  Product Description Transformer oil is very important to reliability, performance and lifetime of transformer. The oil should be free from moisture, dissolved gases, particles, etc. Even some new oils may require treatment to acceptable level before injecting into the transformer;  Our ZJA China Oil Purifier is professional for treatment of transformer oil, it can efficiently remove water, gases, acid, particles, etc. from the oil.  With the advantages of high working vacuum, high filtration speed, oil quality protection, the filter advanced the oil treatment technique and equipment performance and once can raise the puncture voltage up to over 35V.  ZJA China Oil Purifier can be installed by sealed regular or movable with a trailer, so it is suitable to treat oil, fill oil in vacuum chamber and circulating dry hot-oil when large transformer is being installed and overhauled.  Product ParametersParametersUnit1.8KY3KY6KY9KY12KY18KYFlow RateL/H18003000600090001200018000Working VacuityPa≤80≤80≤80≤80≤80≤80Working PressureMpa≤0.5≤0.5≤0.5≤0.5≤0.5≤0.5Temperature RangeºC45-6545-6545-6545-6545-6545-65Power Supply 50Hz         380V3-Phase  4-Wireor as request Total PowerKW163670100150200Inlet/Outlet Diametermm20/2025/2532/3240/4050/5065/65Lengthmm160018002200250028003450Widthmm125014501600195021502600Heightmm200022002450270030003000WeightKg5007001460180024004000Oil Quality after purifying:Breakdown VoltagekV60 ~ 70Water Contentppm5 ~ 10Gas Content%≤0.01Filtering Accuracyµm1 ~ 5Acid valuemgKOH/g≤0.03 mgKOH/g  Features One pot with two-stage vacuum-segregating space, it comes into being different pressure so as to keep oil line balance between two stages.  Imported vacuum-pump from Europe has preceding level in the world and high air pump speed guarantee high working vacuity. New technology of vacuum-segregating adopts particular spinning disk and stainless steel machine with dehydration and air pump.   Using new type of heating equipment which can reduce heating burthen and extend oil life.  Oil level control adopts photoelectric way of which the main components are imported from Switzerland.  Customers can choose equipment equipped with all or partly imported components.  It's equipped with filter assemblies imported from Italy.  All pumps must be airproofed by our factory, moreover running without noise and leakage. extended oil life.   Packaging & Shipping ZJA China Oil Purifier is packed in container, it can only be shipped by sea.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
