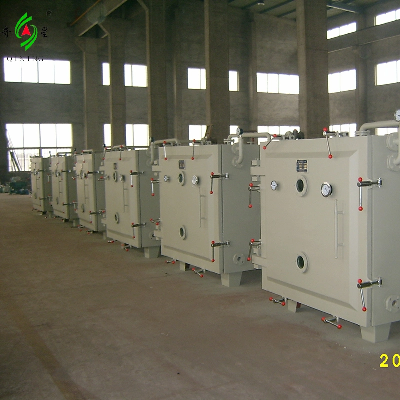

INTORODUCTIONCT-C hot air circulating oven uses is equipped with low-noise and thermostable axial flow fan and automatic temperature control system. The entire circulatory system is sealed, improving the thermal efficiency of oven from traditional 3-7% in drying room to the current 35-45%, with the highest thermal efficiency up to 50%. The design success of CT-C hot air circulating oven make our hot air circulation oven has reached the advanced level at home and abroad. FEATURESMost of hot air loop inside the box so it is high thermal efficiency and energy-saving. It uses forced ventilation, with adjustable air divider plate in the box. The materials are dried uniformly. Heating sources offer a wide choice of steam, electricity, far infrared. Machine has low noise, auto-controlled temperature and convenient installation and maintenance and is stable in operation. It has wide application and can be used to dry various materials, so it is a commonly used drying device. APPLICAITONIt is suitable for heat curing and drying and dehydration of materials and products of pharmaceutical, chemical, food, agricultural, aquatic, light industry and heavy industry, such as bulk drug, crude drug, Chinese medicine decoction pieces, extractums, powders, granules, electuaries, water-bindered pills, packing bottle, pigment dyes, dehydrated vegetables, dried fruit, sausages, plastic resin, electric elements, drying varnish, and so on. TECHNICAL PARAMETERS ModelFieldStandaed ModelEvaporation Area(m2)Effective Volume(m³)DryingCapacity(kg/batch)Radiator Area(m2)SteamConsumption(kg/h)Elactric Heating Power(kw)Fan Volume(m³/h)Fan power(kw)Temperature Difference Inside the Oven(c)Oveall Dimensionsw*d*h(mm)AccessoriesTotal Weight(KG)Drying Cart(Set)Drying Pallet(pc)CT-C-ORXH-7-C7.11.36015156-945100.45±11380*1200*2000124820CT-C-IRXH-14-C14.12.612023201545100.45±22260*1200*20002481580CT-C-IIRXH-27-C28.34.924048403090200.45*2±22260*2200*20004961800CT-C-IARXH-27-C28.34.924048403090200.45*2±24280*1200*22706961880CT-C-IIIRXH-41-C42.47.4360726045135300.45*3±22260*3200*200061442100CT-C-IIIARXH-41-C42.47.4360726045135300.45*3±23240*2200*200081442210CT-C-IVRXH-54-C56.510.3480968060180400.45*4±24280*1200*237551922800CT-IRXH-14-B14.12.612023201514141.1±22480*1200*23752481220CT-IIRXH-27-B28.34.924048403052301.1±22480*2200*24384961530CT-IIIRXH-41-B42.47.436072604598002.2±22430*2200*262061442100CT-IVRXH-54-B56.510.348096806098002.2±24460*2200*262081822300STRUCTURE SCHEMATIC /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
