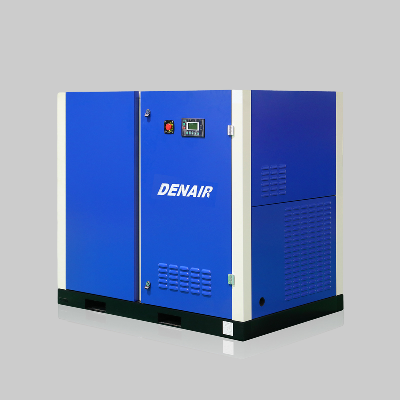

Double Permanent Magnet Variable Frequency Drive Screw Compressor

Industrial Doulbe Permanent Magnet Synchronous Motor (PMSM) Variable Frequency Converter Drive Pm VSD Inverter Screw Air Compressor Advantage   01 Features Of permanent Magnet Variable Frequency Air CompressorUltra-low temperature rise design, which allows the compressor running at ultra-low frequency for a long time.Closed-loop vector control system for faster control and more precise speed control.The compressor unit can still operate efficiently when the frequency is reduced by more than 50%.The pressure is stable and the pressure fluctuation is accurately controlled within 0.1 bar.The figure shows a comparison of several starting methods. It can be seen that the frequency converter is slowly accelerated to start, the starting is more stable, and the current peak is completely avoided.  02 Air EndMore stable, no mechanical transmission failure: high-efficiency permanent magnet synchronous motor and screw male rotor adopt embedded-integrated shaft direct connection structure, no gear transmission, completely eliminate gear pitting or broken teeth; Two independent permanent magnet motors are integrated directly drive two air ends, no coupling failures.More energy efficient, the air end is always running at energy-saving speed.More efficient and efficient permanent magnet motor + no transmission efficiency loss.More comfortable, low running noise, eliminating three sources of noise: no-click bearing noise, no gear meshing noise, no coupling drive noise.More compact: The permanent magnet motor is small in size and the integrated structure saves space.Under the set frequency conversion pressure, the unit will automatically adjust to keep the output pressure within ± 0.1 bar, reducing unnecessary waste (the power consumption increases by 7% for every 1 bar of pressure increase)  03 Advantages of Permanent Magnet Motors Compared to General Asynchronous MotorsHigh efficiency: Eliminates excitation system losses and improves efficiency.It is still efficient under low load conditions: the energy efficiency of a permanent magnet motor is more than 9% higher than that of a conventional asynchronous motor at full load operation, and its energy efficiency remains unchanged as the speed decreases.Large overdrive torque: The ratio of the maximum starting torque of the permanent magnet synchronous motor to the rated torque can be more than 3 times, while the general asynchronous motor is only 1.6 times.The control is more stable: the corresponding time of the permanent magnet motor is
