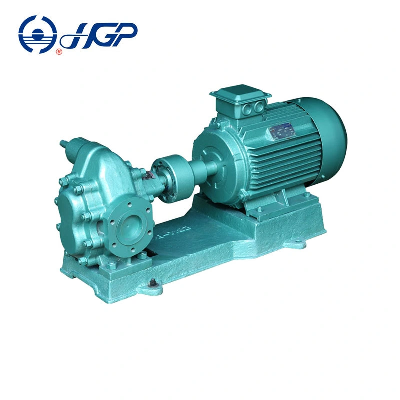

China Huanggong Machinery Group Co.,Ltd.Specialist in marine pump industry for over 35 years.KCB Type Oil PumpProduct DescriptionCapacity:1~60m3/hPressure:0.1~1.45MPaViscosity:≤300mm2/sTemperature:-20-300ºCProduct OverviewThe pump is suitable for conveying various oils with viscosity below 300C. S.T, such as crude oil, diesel oil, lubricating oil, animal and vegetable oil, etc. Equipped with copper gear, it can transport low flash point liquids, such as gasoline, benzene, etc. The medium temperature shall not exceed 70 ºC, and the service temperature of high temperature resistant oil pump shall not exceed 300 ºC. The pump itself is equipped with safety valve, which plays a role of safety protection in case of overload. There are three types of shaft seals: skeleton oil seal, mechanical seal and packing, which shall be indicated in the order. Model Capacity (L/min)Pressure (bar)Suction Head (m)Power (kw)Diameter (Inch)Speed (r/min)KCB18.3 18.314.551.53/4"1400KCB33.333.314.552.23/4"1420KCB55 553.351.51"1400KCB83.3 83.33.352.21 1/2"1420KCB133.3 133.33.3542"1450KCB200 2003.3542"1450KCB200 200655.52"1450KCB200 2001057.52"1450KCB300 300655.53"960KCB483.3483.33.657.53"1450KCB633 633105113"1450KCB960 9602.85114"960/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
