High Density Hydraulic Clay Kaolin Ceramic Vacuum Slurry Piston Plunger Pump

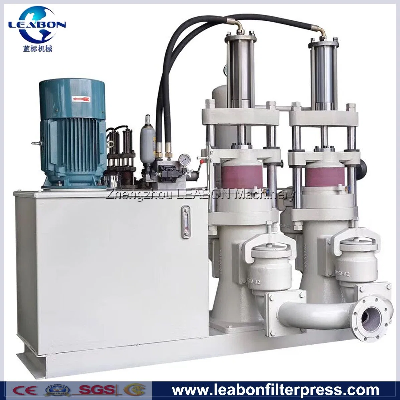

High Density Hydraulic Clay Kaolin Ceramic Vacuum Slurry Piston Plunger Pumpproduct description:The YB series hydraulic ceramic plunger pump is driven by oil pressure and the plunger is made of highly wear-resistant corrosion-resistant alumina ceramic. The pump body can be turned into cast iron, stainless steel, etc. according to different characteristics of the ceramic industry and the chemical industry. The pump is a hydraulically driven two-cylinder double-acting ceramic plunger mud pump with ceramic alumina plunger and combined sealing. The utility model has the advantages of simple structure, stable operation, reliable work, low noise, high working pressure, small pressure fluctuation, small volume, light weight, convenient operation and maintenance, and long service life.Structural featuresThe pump has YB85, YB110, YB120, YB140, YB200, YB250, YB300, seven series of more than 30 specifications, the flow can be from 0.1m3 / h to 45m3 / h. The maximum pressure of the atmospheric pump can reach 2.5Mpa, rated Pressure 2.0Mpa, low pressure pump pressure is 1.0Mpa. The pressure and flow rate of the above pump can be arbitrarily composed of high pressure and large flow (with large tower), high pressure and small flow (with small tower), low pressure and large flow (transfusion), medium pressure medium flow ( Pump type, such as pressure filter, can meet different needs.Performance characteristics:The pump is divided into a high pressure pump, a low pressure large flow pump and a variable pump. The high pressure pump is suitable for conveying slurry at a long distance or to high altitude; the low pressure and large flow pump is suitable for stably conveying a large amount of slurry; the variable pump is suitable for use with various filter presses and filter devices, and the pump will be filtered. The increase in density automatically increases the pressure and reduces the flow.The main parameters:TypeFlow m3PressurepowerdimensionWeightYB85-2.52.51-241200*800*1400400YB120-70-70~2.5MPa7.5kw1630*1070*1860mm750kgYB140-100-100~2.5MPa11kw1630*1120*1900mm850 kgYB200-200-220~2MPa18.5kw1820*1280*2100mm1250 kgYB250-300-320~2MPa22kw1950*1480*2250mm1500 kgYB300-400-420~2MPa30kw2150*1650*2450mm2300 kgWorkshop:FAQ:1. How to buy your interested products?You can provide us the water sources, water quality, flow rate and ground area, material requirements about your project (More details, please contact us).2. How to pay? L/C or T/T are acceptable. 3. What is the delivery time?It depends on order quantities. Generally speaking, the delivery time will be within 2 months.4. How to pack the products?We use standard export package. If you have special package requirements, we will pack as you required, but the fees will be paid by customers.5. How to install after the equipment arriving destination?We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you.6. How long is the validity?The validity is 12 months after installation.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
