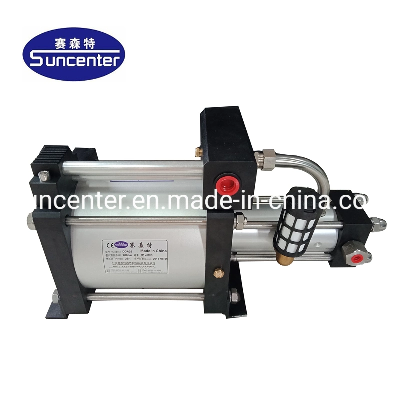

Suncenter Helium Hydrogen Oxygen Nitrogen Natural Gas Recovery Booster Pump

Suncenter Helium/Hydrogen/Oxygen/Nitrogen/Natural Gas Booster Pump for salesCompressed Air Driven Gas Booster Pump- DGA/DGD/DGT Series Suncenter Air Driven Gas Boosters provide for pressures up to 80Mpa (11,600 psi). Used for virtually all known gases, these boosters are ideal for increasing gas pressure, transferring high pressure gas, charging cylinders and scavenging. Key features include: Compressed Air driven - no electricity required (connect to normal air compressor)In order to extend the lifetime of the pump, the driving air pressure should not be higher than 8 barNo airline lubricator required Hydrocarbon free - separation between air and gas sections Pressures to 80Mpa (11,600 psi)  Wide range of models with different ratiosBuilt-in-cooling on most models Easy to install, operate and maintainBest price / performance ratio No heat, flame or spark risk and explosion proof Automatic pressure holding, whatever the cause of the pressure drop, the Suncenter   pump will automatically start, keep the loop pressure constantApplicable gas: Argon/Helium/Hydrogen/Oxygen/NO2/CH4/LNG/LPG/CNG/FM200 etc.                         Applications   Pressure test with gasGas transfer and filling(Argon/Helium/Hydrogen/Oxygen/Nitrogen/CO2/NO2/CH4/LNG/LPG/CNG/FM200 etc.)Charging of gas cylinder and accumulator with nitrogenSupply for isolating gas systemsGas assisted injection moldingTransfer of oxygen cylindersCharging of breathing air bottlesLeak test Hydrostatic Testing for valves, tanks, pressure vessels, pressure switches, hoses, pipes and tubing, pressure gauges, cylinders, transducers, well casings, BOPs, gas bottles and air craft componentsSafety valve adjustingDGA series gas booster pumps(Single acting, single air drive head): DGA pumps are available with high quality seals, which provide significantly better service life as well. Pump head fitted with exhaust cooling devices. All parts in contact with the gas are made of stainless steel.  ModelPressure boost ratioMin. gasInlet pressurePA (bar)Max.gasInlet pressurePA (bar)Max. gasoutlet pressure PB (bar)Driven air pressure  PLFormula tocalculate gas outlet pressure PBConnection:Gas Inlet /Gas outlet (NPT thread)Max. flow at driven air pressure of 6bar (L/min)DGA022:11.016162bar-8 bar2X PL1/2 / 1/2960 (at PA of 6 bar )DGA055:104040 2bar-8 bar5XPL1/2 / 1/2680(at PA of 6 bar )DGA066:12.048482bar-8 bar6XPL1/2 / 1/2360(at PA of 10 bar )DGA1010:13.580802bar-8 bar10XPL3/8/ 3/8210(at PA of 10 bar )DGA2525:17.0 200200 2bar-8 bar25XPL1/4/ 1/4120(at PA of 20 bar )DGA4040:1103203202bar-8 bar40XPL1/4/ 1/4200(at PA of 40 bar )DGA6060:120 480480 2bar-8 bar60XPL1/4/ 1/4180(at PA of 40 bar )DGA100100:1258008002bar-8 bar100XPL1/4/ M14X1.5136(at PA of 40 bar )Technical spcificationNote:  PL: driven air pressure   PA: gas inlet pressure   PB: gas outlet pressure  In order to extend the lifetime of the pump, the driven air pressure should not be higher than 8 barDGD series gas booster pumps(Double acting ):DGD series pumps are double acting, with single air driven heads type.   DGD pumps are available with high quality seals, which provide significantly better service lifeDouble pump heads with exhaust cooling devices. All components in contact with the gas are made of stainless steel. Pipes mounting way are available as customized.   ModelPressure boost ratioMin. gasInlet pressurePA (bar)Max.gasInlet pressurePA (bar)Max. gasoutlet pressure PB (bar)Driven air pressure  PLFormula tocalculate gas outlet pressure PBConnection:Gas Inlet /Gas outlet (NPT thread)Max. flow at driven air pressure of 6bar (L/min)DGD1010:13.58080 2bar-8 bar10XPL+ PA3/8/3/8410(at PA of 6 bar )DGD2525:110 200200 2bar-8 bar25XPL+ PA1/4/1/4396(at PA of 20 bar )DGD4040:115 320320 2bar-8 bar40XPL+ PA1/4/1/4320(at PA of 40 bar )DGD6060:125 480480 2bar-8 bar60XPL+ PA1/4/1/4215(at PA of 40 bar )DGD100100:135 800800 2bar-8 bar100XPL+ PA1/4/M14*1.5300(at PA of 60 bar )DGD130130:150 10401040 2bar-8 bar130XPL+ PA1/4/M14*1.5180(at PA of 60 bar ) Technical specificationNote:  PL: driven air pressure   PA: gas inlet pressure   PB: gas outlet pressure  In order to extend the lifetime of the pump, the driven air pressure should not be higher than 8 bar2DGD series gas booster pumps(Double acting, double air driven heads ):  ModelPressure boost ratioMin. gasInlet pressurePA (bar)Max.gasInlet pressurePA (bar)Max. gasoutlet pressure PB (bar)Driven air pressure  PLFormula tocalculate gas outlet pressure PBConnection:Gas Inlet /Gas outlet (NPT thread)Max. flow at driven air pressure of 6bar (L/min)2DGD1010:138080 2bar-8 bar2bar-8 bar1/2 / 1/2980(at PA of 6 bar )2DGD2525:16200200 2bar-8 bar2bar-8 bar3/8 / 3/8560(at PA of 10 bar )2DGD4040:125320320 2bar-8 bar2bar-8 bar3/8 / 3/8480(at PA of 40 bar )2DGD6060:130480480 2bar-8 bar2bar-8 bar3/8 / 3/8320(at PA of 40 bar ) Technical specificationNote:  PL: driven air pressure   PA: gas inlet pressure   PB: gas outlet pressure  In order to extend the lifetime of the pump, the driven air pressur
