Use in Hospital Medical Negative Pressure Vacuum System

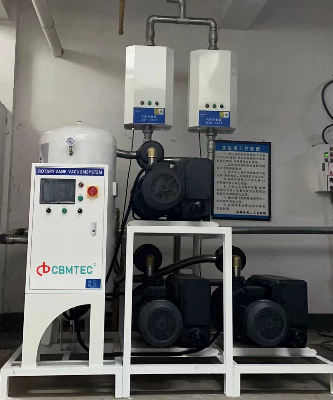

Product DescriptionWholesale Price Ultrasonic Instruments Portable Ultrasound MachineMedical vacuum systems are designed to supply medical vacuum to medical gas pipeline systems in medical facilities.CBMTEC medical vacuum system is composed of rotary vane vacuum pump, buffer tank, dirt collection tank, dust filter, bacteria filter, pressure gauge, PLC electronic control box.The medical vacuum system is equipped with 2 to 4 vacuum pumps. The vacuum pump is available in both oil-lubricated and oil-free type. Each pump includes oil level sight glass,check valve. System are manufactory in ISO9001 system to ensure high quality. System are available in two configuration types: Vertical tank and horizontal tank mount.The medical vacuum system is equipped with an LCD control cabinet to control the vacuum pump.The system is equipped with double bacteria filter to ensure the purity of the gas entering the vacuum tank. The Medical Vacuum system and its component parts undergo a complete electric and pneumatic test prior to shipment.The oil-lubricated rotary vane vacuum pump is a durable long-life pump that has been used for many years in hospital and laboratory applications. Lubricated by circulating oil provides a consistently high vacuum level in continuous operation. The use of oil facilitates higher efficiency of the pump, lower operating temperatures and lower sound levels. Oil-sealed rotary vane pumps are ideal for most hospital applications.Pros:• Lowest initial cost• Highest ultimate vacuum levels• Long vane life• Lower noise levels compared to other typesCons:• Higher maintenance (oil & filter changes, vanes)Specifications* PLC control panel* Application: Medical or Laboratory* Technology: rotary vane* Available in Simplex, Duplex, Triplex or Quad* Different capacity receiver tank available* Minimal maintenance, Maximum Durability* Include LCD digital display to show vacuum information* Completely tested before to shipmentSpecs of 15'' notebook color doppler ultrasound machine:15 Inch TFT Display Viewing Angle:170°Resolution:1024X768Pixels 7500mAh Lithium Battery Continuous Working Time:2hours Easy OperationOne Button Automatic Image Optimization Trolley(Optional)AccessoriesOne Convex Probe(3.5 MHz)One Power CordOne User ManualOne Adapter        Anyway,should you have any intersts or some more info needed on our Medical Vacuum Systems Products and Medical Gas Pipeline System Products,you are really welcome to enquire us anytime!Key Contact:  Ethan Liu (Exp. Mgr) URL: http://cbmtech.en.made-in-china.com ;     http://cbmtech.en.made-in-china.com;    http://cbmtech.en.made-in-china.comOur Exhibition/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
