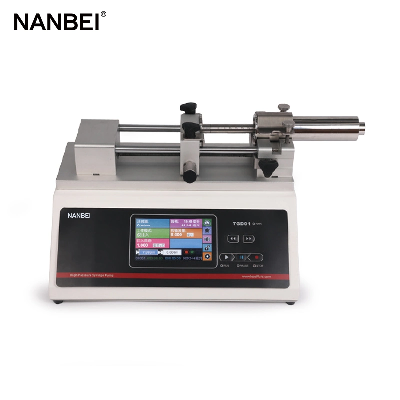

Touch Screen High Precision High Pressure Syringe Pump for Viscous

Touch Screen High Precision High Pressure Syringe Pump For viscousProduct DescriptionTGD01 Precision High Pressure Syringe PumpTGD01 is a single channel high pressure syringe pump,HD LCD touch screen,transmission of linear thrust> 200lbs in a wide range of flow rate, support five working modes such as infuse and withdraw. RS485 communication, compatibility MODBUS protocol, wide range power input, suitable for high-precision transmission of liquids (including high viscosity). Function and Feature • Accurate and stable flflow rate • Can be loaded with stainless steel syringes for high pressure or viscous liquid transmission. • Accuracy and stability of liquid injection • Power-offff memory function • Easy to complex programming without computerApplication • High thrust injection • Highly corrosive liquid injection • High viscosity liquid injection • Micro high precision injection • Injection into a high-pressure containerDetails Images  Product ParametersParameter data:Syringe size0.5μL~140mLFlow range3.06pL/min(0.5μL syringe)~215mL/min(140mL syringe)Working modeinfuse, withdraw, infuse /withdraw, withdraw/infuse, continuous modeChannel1 channelStroke of pump140mmPusher advance0.156μm/μstepLinear speed1μm/min~190mm/minAccuracyerror30% of pump stroke)Rated linear force91kg(100% thrust)Thrust regulation1~100% arbitrary adjustableSyringe selectionbuilt-in main manufacturers, the main model syringe to choose, can use custom syringe, direct input syringe size and diameter.Flow calibrationthrough the calibration procedure to obtain more accurate fluid volumeDisplay4.3-inch color LCD with screen display transfusion volume, residual fluid volume, flow. Animation display operation status.Operation modetouch screen + buttonPower-off memorystoring the running parameters automaticallyCommunicationRS485,MODBUS ProtocolExternal controlExternal signal control start/stop , status signal outputPower supplyAC100~240V,50Hz/60HzEnvironmentTemperature 5~40ºC,relative humidity
