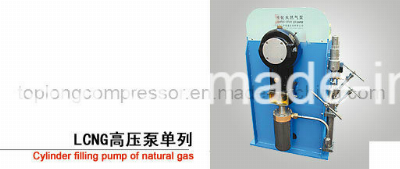

Lcng High Pressure Filling Pump (Sv-1200/250)

LCNG high-pressure pump (single) For media Liquefied natural gas (LNG) Range LNG filling stations The main technical parameters Flow: 600-1500 L / h Maximum outlet pressure: 25 Mpa Optional Inverter Explosion overpressure interlock device Safety valve, temperature valve (into the liquid, return air and deflated) High-pressure emergency shut-off vent valve (pneumatic) Outlet temperature interlock device Pump temperature interlock device (to prevent cavitation) Leak detection and alarm devices Features All electrical components required configuration by explosion Vertical or inclined design, can reduce the required net positive suction head of imports to prevent cavitation Outsourcing high vacuum jacketed pump head to minimize cold loss Gearbox lubricated by grease (commonly known as "oil-free"), no liquid oil leaks and blown with helium Import and export are not integrated in the flange on the pump to take over simple Strengthen seal structure, safe and reliable, and seal joints and helium blowing A variety of alternative control elements, control and security enhanced ModelTypeFlow Range L/hInlet Pressure Mpa  Max Pressure MpaSV-1200/250SV-1500/250SingleVerticalPiston120015000.02-1.65.0-25    /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
