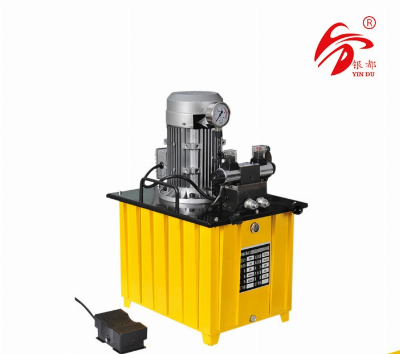

3kw Double Active Heavy Duty Hydraulic Electric Pump (ZHH700C-10B-II)

3KW Double active heavy duty hydraulic electric pump ZHH700C-10B-IIDouble active heavy duty hydraulic electric pump ZHH700C-10B-IIPower rating(380V)1.5KW1.5KW2.2KW3.0KWWorking pressure70MPA70MPA70MPA70MPALow Flow10L/min10L/min10L/min10L/minHigh Flow1.5L/min1.5L/min2.0L/min3.0L/minOil capacity20L40L40L40LDimension360*300*560480*360*660480*360*700480*360*700Weight45kg47kg54kg56kgFeatures and functions:1. Large tonnage double or single acting soleniod valve control electric pump is with high pressure, convenient for maintenance. With manual pedal switches could make jacks move up and down freely. With solenoid valve control oil return.2. The pump is widely used. It can be used as a source of hydraulic machinery of all kinds of pressure, but also as a variety of high, medium and low pressure hydraulic source experiment.3. The hydraulic lifting tools, pressure-shaping tools, pipe bender, straightening tools, demolition tools, punching tools could be assembled with this kind of pump.Manual instructions:1. Connect hydraulic tools and high pressure tube.2. Switch on manual or pedal switch to start the motor oil pump.3. Begin to pump hydraulic tools supporting oil pressure reaches the appropriate location.4. Press the other end swtich, start pressure release(when run 20 liter pump, it should be open the filler cap so that oil container is ventilating)  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
