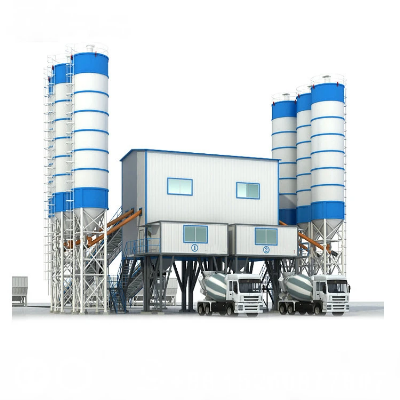

Construction Machine Mixing Concrete Batching Plant

Product Information1.Modular design 2.Electronic measurement 3.High accuracy 4.Automatic adjustment and alarm Application:Base construction projects like road, airport, dock, etc Advantages:1. Stable high quality 2. competitive price 3. high working efficiency 4. low consumption 5. accurate measurement  Main Technical Parameter:ModelSAZS60SAZS90SAZS120SAZS180Capacity (m³/h)6080120180MixerModelJS1000JS1500JS2000JS3000Power(KW)2X18.52X302X272X55Output11.523Max stone size(mm)6080120150Hopper Capacity3*84*104*154*25Belt Conveyer (t/h)200250300500Weighing AccuracyAggregate2500±2%3500±2%4500±2%6500±2%Cement600±1%900±1%1200±1%1800±1%Coal ash200±1%300±1%600±1%800±1%Water300±1%400±1%600±1%800±1%Additive20±1%30±1%30±1%50±1%Total Power65105151205Discharge Height3.83.84.14.2Characteristics for concrete batching plant 1) Little land consumption;  2) Quick installation, taking just 2-4 days to complete installation of the whole equipment; 3) Implemented with hoist to move material upward, special design of hopper and rails, ensuring efficient storage and discharge of aggregate;  4) Main body of the equipment is placed on a steel framework, which makes it convenient to put it in trailer for transport. Moreover the steel framework could serve as part of fundament, reducing construction of foundation;  5) Mixing platform, dosage platform and lifting platform enjoys as much space as that of stationary plant, ensuring convenient operation. Commissioning and maintenance space; There would be enough work space even when the plant is fitted with external covering. Our Cases  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
