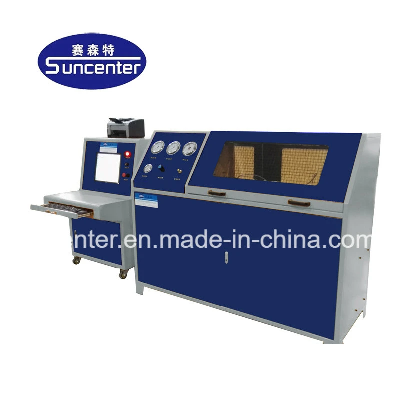

Hydraulic Computer Control Burst Pressure Test Bench Machine

Hydraulic/hydrostatic/burst pressure test bench-Computer control with armored glass protection cabinetSuncenter has rich experience in the hose/tube/pipe/valve/sensor/cylinder/guage pressure test field, we can provide reliable performance hydraulic pressure test equipment, leakage test equipment, burst test equipment and impulse test equipment, according to the standard of (GB/T5568, GB7939, ISO6802, ISO6803, ISO8032, GB/T12722, gb16897, GB/T5563, GB/T10544 etc.)do the test to the hydraulic hose and hydraulic hose assembly, automobile brake pipe, power train pipes and other pressure parts for pressure performance test.1, Product application scope and functional characteristics:Applicable range of hydraulic pressure test equipment:Automobile steering tube, brake pipe, air-conditioning pipe, oil pipe, water pipe cooling, radiator, heater hose, hydraulic equipment, condenser, evaporator, air conditioning filter hose, turbocharging system hose, car brake pump, a cylinder body, a project hydraulic hose, air hose and manifold, rigid pipe, joints, valves,cylinder, pressure gauges, pressure sensor,pressure vessel, pressure transmitter etc.Function and characteristics of hydraulic pressure test equipment:The main components is the mature products produced by our companyThe piping system with non welded connection.The test fluid system and driving fluid system are separated; it is more convenient for test temperature control and test media diversificationThe software adopts force control configuration software or written in LABVIEW (computer control)A variety of ancillary tooling, meet different specimens of installationIn the testing process, the pressure can be automatically compensated; time after the bursting pressure decreased rapidly, pressure automatic stop system;The protection of tooling, special design, can effectively protect the damage of blasting operation personnel and equipment.The realization computer control function, can be free to set up a water filled exhaust time, holding pressure time, aeration cleaning time, test pressure in the process of the experiment can be set arbitrarily single or multi section pressure maintaining test, can also holding pressure directly after blasting, boost the speed to maintain a constant, can realize stepless adjustment and test data and curve parameters can real-time display, can automatically save the test results, and any print test reports. (computer control)2.System technical parameters and compositionModel: SHT-GD400-CCSHT------- Suncenter Hydraulic Pressure Test MachineGD400-------Sucneter DGGD400 hydraulic booster pumpCC------- Computer controlDrive source: clean compressed airDriven by compressed air pressure: 3-8bar (recommended driving pressure of ≤8bar)The maximum air consumption: 460LN/min (6 kg)The maximum output pressure: 0-3200 bar.3. Working principleTechnical specification  ModelPressure RatioMAX OutletPressure(bar)*Driven Air inlet port High pressure Outlet portMAX Flow(L/min)**SHT-GD4-CC4:132G 1/2NPT/ZG70.0SHT-GD6-CC6:148G 1/2NPT/ZG48.60SHT -GD10-CC10:180G 1/2NPT/ZG30.61SHT-GD16-CC16:1128G 1/2NPT/ZG19.73SHT-GD28-CC28:1224G 1/2NPT/ZG11.30SHT-GD40-CC40:1320G 1/2NPT/ZG7.69SHT-GD64-CC64:1512G 1/2NPT/ZG4.94SHT-GD80-CC80:1640G 1/2NPT/ZG3.96SHT-GD100-CC100:1800G 1/2NPT/ZG3.13SHT-GD130-CC130:11040G 1/2NPT/ZG2.4SHT-GD175-CC175:11400G 1/2NPT/ZG1.81SHT-GD255-CC255:12040G 1/2NPT/ZG1.23SHT-GD400-CC400:13200G 1/2NPT/ZG0.79SHT-G510-CC510:14080G 1/2NPT/ZG0.65SHT-G800-CC800:16400G 1/2NPT/ZG0.42   Dongguan Suncenter Fluid Control Equipment Co., Ltd is the member company of Suncenter Group, which is located in Dongguan city of Guangdong province in China. With more than 15 years experiences in fluid pressure exchange and controlling field, we provide various kinds of pneumatic and hydraulic booster pumps, systems and solutions to the customers all over the world. Due to our best product quality, competitive price as well as excellent after-sales service, we have win a great reputation in the field. Our main products including:High Pressure Booster Pumps (Air Driven Gas Booster Pump, Air Driven Liquid Pump, Air Amplifiers)High Pressure Systems (Gas/Liquid Booster Stations,FM200 filling machine, Tube Expanding Machine)High Pressure Test Equipment(Hydraulic/Burst/Hydrostatic test machine,Cylinder test machine,Valve test bench,Impulse Testing Machine, etc.) Product ApplicationOil Industry, Gas Industry, Chemical Industry, Fire Fighting, Research Institutions etc. Our service13 months' free warranty since the purchasing date and free technical support during lifetime  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
