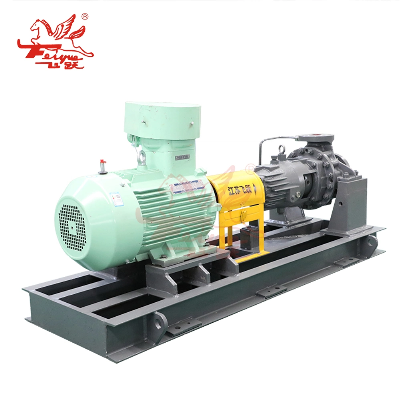

FZE End Suction Close Coupled Centrifugal Pumps for oil transfer Product DescriptionConform to design standard of API610Flow range: 3~2600m2/hLift range: 4~300mDesign pressure: 5.0MPa at mostApplication temperature: -80~450ºCApplication field: transport all kinds of clean media, particle contained high-temperature or low temperature inflammable, explosive, poisonous, neutral or strong corrosive media. Mainly used in industries and fields of oil refinery,petrochemical engineering,low-temperature engineering, coal chemical industry,chemical fiber and general industrial process, power plant, large and medium sized heating and air conditioning equipment, environmental protection engineering, marine industry and seawater desalting plant etc. SummaryFZA,FZE series pump is designed and manufactured in accordance with API610, featuring; Safe and reliable structure, stable operation.Unparalleled cavitation performance. due to small NPSHr, economizing investment on device.Wide performance range, close interval of flow capacity and delivery lift, convenient type selection.High standardization and generalization, the impeller and accessories of bearing of ZAand FZE is interchangeable.There's three cooling methods of bearing, air cooling, fan cooling and water cooling, selected as different servicetemperature.Applicable rangeThis series of product is applicable to convey clean or particle-contained liquid, neutral or corrosive media at low or high temperature,mainly used in the fields of petroleum processing, petrochemical, papermaking, coal processing, food, pharmacy. environmental protection.Parameter rangeFlow capacityQ:3~2600m2/hDelivery lift H:4~300mWorking pressure P:FZA 2.5MPa FZE 5.0MPaWorking temperature: FZA -45ºC~+180ºC FZE -80ºC~+450ºCMeaning of model code250-Nominal diameter of impeller(mm)50-Outlet diameter of pump(mm)FZA(FZE)-Series codeChart1Impeller nut2Pump body3Impeller4Pump cover5Axle sleeve6Machine seal7Seal cover8Bearing box9Front axle bearing cover10Suspension loop11Front bearing12Air chamber13Oil draining bolt14Axle15After bearing16Lock nut17Rear axle bearing cover18Coupling Product ParametersPerformance parameters of the tableCompany ProfileFAQ/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
