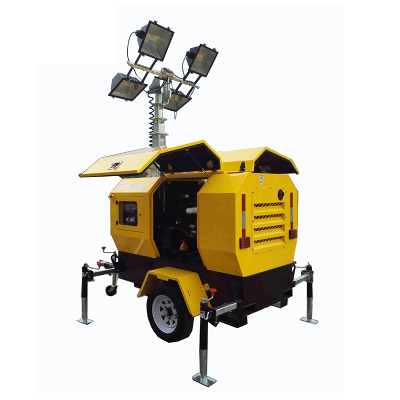

Mobile Diesel Light Tower with Trailer

Introduction of light powerPortable Telescopic Light tower has multi-function, with wide lighting scope, Mobile lighting tower is widely applied in various fields, like airport, docks, mining sites, stadiums, railway construction sites, emergency recovery sites. Product parameter:Diesel trailer light tower,trailer mounted lighting towers,mobile light tower (elevated by hand-operated) ModelPTLT1200Power x lamp quantity1000Wx4Total luminousness440000LmLampMetal lampsStanchion Mast operation3 sections mastElevating height9140mmElevating modeBy hand-operatedEngine TypeAir-cooled,four cylinder,diesel enginePower 13KW / 15.5KWOil tank volume100LContinuous working time42H / 39HAlternator TypeSingle-phase alternatorFrequency50 / 60HzMax. power12KVA / 15KVARated power10KVA / 12KVAInsulation gradeBSize Transport size4080x1600x1750mmWeight1105kgMobile Light Tower Features & benefits1)High-efficiency light fixtures provide uniform light pattern 2)Durable fixtures resist shock and last longer 3)Unique lamp design increases filament life and keeps maximum light on the job longer, increasing productivity while saving time and money 4)Rotating tower allows 360-degree rotation, reducing the need to frequently move the light tower trailer Compact design with removable tow bar allows efficient transport and storage (up to 18 units racked systematically in a 40' high cube container; up to 12 units in a flat-bed truck) 5)Lockable, weather-resistant, steel cabinet protects components from the elements 6)Two outriggers and four leveling jacks provide stability 7)Control panel features running hour meter, receptacles for powering external equipment, and circuit breakers for on/off functionality and protection 8)Automatic engine shutdown system protects engine from damage due to low oil pressure and high coolant temperature 9)Exclusive hinged top panel provides unimpeded access to engine, generator and electrical components Fuel capacity of 30 gallons provides extended run times of 60 to 70 hours between refueling, depending on environmental influences 10)Translucent polyethylene fuel tank provides instant view of fuel level, eliminating the need for a fuel gauge 5KW-20KW Trailer Type Water Cooled Mobile Light Tower Model SALT-4                                   SALT-2         SALT-3SALT-1GeneratorEC3200CX/ DieselDiesel 3KW/Disel 5KW Diesel 5KW Diesel 3KW/Diesel 5KWTypeAir cooled, 4stroke, single cylinder direct injection type diesel engineAir cooled, 4 stroke ,Single cylinder direct injection type diesel engine 6GF-LED Air-cooled, 4-stroke,OHVGenerator TypesSingle-phase alternatorSingle-phase alternator   single cylinderRated Power3.0kw2.5KVA 4.8KW 2.8KW/4.8KWRated Voltage220V220V 220V 220VContinuous working time (hour)6H6H 6H12HOil Tank15L15L  15LPower*lamp1000W*2100W*4/200W*4 1000W*4 400W*4Stanchion Lamp frame4 sections4 sections 4 sections 4 sectionsElevating height2300-4800mm2300-4800mm 2300-4800mm 2300-4800mmAnti-slope
