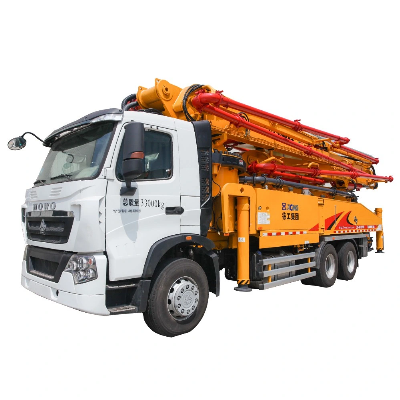

Modern Designs Concrete Boom Pump Machine with Good Price

Concrete Pump Truck Mounted Pump For Sale Introduction1.The closed free fluid power system formed by double pump confluence has the features of large output, small depreciation and smooth commutation with no impact.  2.The intelligent control system makes the driving oil flow incessantly and directly into the driving oil cylinder without any loss. 3.As there are no fussy middle commutation control valves, the commutation impact is reduced and excessively high oil temperature is avoided. Meanwhile, it makes maintenance easier. 4.Compared with the open system with a large oil tank, the closed system needs a small oil tank. The oil in the tank flows gently, which reduces the chance of emulsification. 5.The unique buffering technology can lower the system's high-pressure peak value. Even at the time of high output, the distributing boom vibrates little and the tail pipe remains stable. 6.The concrete output can be regulated through the electronic proportional variable adjustment according to your actual needs. 1.Reach height: 52m  2.Dimension:11180*2500*3990mm  TravelCategoryItemUnitParameterChassisModel SATMCPMax. speedkm/h90Max. gradeability 38%Min. turning diameterm27.4Brake distancem≤10Wheelbasemm1995+5205+1370+1450Tread (front/rear)mm2028/1872Approach angle/departure angle.18/12Min. clearancemm270Tyre specification 12.00R20EngineModel D13Output powerkw/(r/min)324/1400~1800Max. torqueN.m/(r/min)2200/1050~1400Displacementl12.8Emission Standard Nation III GBOthersDimension (Length×Width×Height)mm14665×2500×3990Total vehicle weightkg47000Fuel tank capacityl410Fuel consumption per 100kml/100km50Pumping operationPumping systemTheoretical output(high pressure/low pressure)m3/h90/138Concrete pumping pressure(high pressure/low pressure)Mpa13/8.7Theoretical pumping times(high pressure/low pressure)/min18/27Max. diameter of pumping concrete aggregate 40Feeding height 1450Placing boomPumping slump range 12-23Reach height 51.5Reach depth 40Slewing radius 47.5Slewing angle 3641st boom stretch angle 962nd boom stretch angle 1803rd boom stretch angle 1804th boom stretch angle 1805th boom stretch angle 260Outrigger spanOverall outrigger span11020±50Front outrigger transverse span10730±50Rear outrigger transverse span10430±50OthersDosing type S valveLubricating method Automatic lubricationControlling method Manual/remote controlWater tank capacity 650Max. pressure of water pump 2ItemsUnitParametersSATMCP-48/5SATMCP-48/5SATMCP-52/5SATMCP-52/5Main Technical Parameters inMax. Distributing Radiusm43.743.747.847.8Max. Distributing Heightm47.747.751.851.8Max. Distributing Depthm34.334.339.839.8Height of Distributing Boom When Stretchedmm9065906594009400Distance between Front Landing Legsmm978097801029510295Distance between Rear Landing Legsmm986098601065010650Distance between Front and Rear Landing Legsmm947094701031010310Rotary Range ofDistributing Boom 365°365°365°365°Rotary Angle of Each Boom Section°91/180/180/180/27091/180/180/180/27090/180/180/180/27090/180/180/180/270Close-control Distancem33333333Remote-control Distancem200200200200Max. Traveling Speedkm/h89858080  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
