Fire Fighting Sprinkler System Fire Pumps Manufacturers

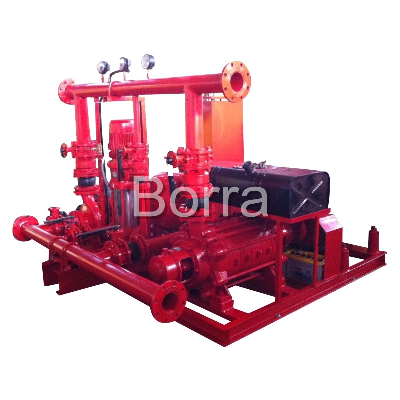

Made in China, a global reputationFire Fighting Sprinkler System Fire Pumps ManufacturersPump Introduction:Fire Dual-power Water Supply Unit with Diesel and Electric Pump, IS series single-stage, S, SOW series of new single-stage & dual-stage, TSWA, D series. Domestic or foreign diesel engines used have compact structures, are easy to maintain and use, automatic control, reliable.   Features:a)Compact structure b)Stable running, low noise c)No leakage d)Convenient operation e)Viewing from the inlet of the pump, the outlet of it can be mounted in one of the three ways, horizontally leftward, vertically upward and horizontally rightward   Application:a)Water supply for the fixed-fighting system of both industrial and civil builtings b)Fire hydrant fire-extinguishing system  c)Automatic spraying fire-extinguishing system  d)Fog-spraying fire-extinguishing system etc   Conditions:Flow range: 40-3000m3/h Pressure range: 0.2-2.2MPA Rotation speed: 1500r/min    1800 r/min    2400 r/min    3000 r/min Ambient pressure :> 90KPa Ambient temperature: 50C-400C Relative humidity: ≤80% In abnormal conditions, greater diesel engine power is needed to match the pump.   Configuration:1, pump: IS series of single-stage single-suction, S, SOW series 1-stage dual-suction, TSWA, D series multi-stage. 2, diesel engine: 1-cylinder, 2-cylinder, 3-cylinder, 4-cylinder, 6-cylinder, 8-cylinder, 12-cylinder diesel engine. 3, rotation speed: 1500r/min, 1800r/min, 2400r/min, 3000r/min. 4, accessories: Filter muter, cooling system, fuel tank, seat, heat-exhaust water tank, storage battery, and charger. (Preheat system) 5, control cabinet: microcomputer, PLC, sensors, automatic control cabinet..   BORRA  Fire Pump SystemDiesel engine fire pump Main electric fire pump Jockey pump (pressure booster pump) Fire pump control panel Technical parameters: m3/hmr/min XBC8.0/13.930-50-6084-80-752900IS80-50-250XBC7.0/13.047702900IS80-50-250AXBC6.0/12.244602900IS80-50-250BXBC8.5/11.742852900IS80-50-315BXBC11.0/13.471102900IS80-50-315AXBC12.5/13.930-50-60128-125-1232900IS80-50-315XBC5.0/27.860-100-12054-50-472900IS100-65-200XBC6.0/23.986602900IS100-65-250BXBC7.0/25.893702900IS100-65-250AXBC8.0/27.860-100-12087-80-752900IS100-65-250XBC10.0/25.0901002900IS100-65-315BXBC5.0/55.6120-200-24058-50-452900IS125-100-200XBC6.0/48.1173602900IS125-100-250BXBC12.5/27.860-100-120133-125-1182900IS100-65-315XBC8.0/55.6120-200-2087-80-722900IS125-100-250XBC12.5/55.6120-200-240133-125-1202900IS125-100-315XBC11.0/52.81901102900IS125-100-315AXBC9.2/48.1173922900IS125-100-315BXBC5.0/111240-400-46055-50-451450IS200-150-400XBC5.0/28100501450IS125-100-400XBC5.0/28200501450IS150-125-400XBC4.6/1030-36-4250-46-40145075TSWA×4XBC5.7/1030-36-4262-57-50145075TSWA×5XBC6.9/1030-36-4275-69-60145075TSWA×6XBC8.0/1030-36-4287-80-70145075TSWA×7XBC9.2/1030-36-42100-92-80145075TSWA×8XBC10.3/1030-36-42112-103-90145075TSWA×9XBC6.2/19.262-69-8064-62-561450100TSWA×4XBC7.8/19.262-69-8081-78-701450100TSWA×5XBC9.3/19.262-69-8097-93-841450100TSWA×6XBC10.9/19.262-69-80113-109-981450100TSWA×7XBC6.4/2572-90-10869-64-601450125TSWA×3XBC8.6/2572-90-10892-86-801450125TSWA×4XBC10.8/2572-90-108115-108-1001450125TSWA×5XBC6.0/43119-155-19165-60-551480150TSWA×2XBC9.0/43119-155-19197-90-821480150TSWA×3XBC12.0/43119-155-191129-120-1091480150TSWA×4XBC8.6/77.8190-280-34695-86-771480200D1-43×2XBC12.9/77.8190-280-346142-129-1151480200D1-43×3XBC12.0/125400-450-500123-120-1141480D450-60III×2XBC11.4/139450-500-550120-114-1081480D500-57×2XBC12.0/200550-720-850132-120-1081480D720-62×2XBC5.0/60150-216-26059-50-451480D216-25×2XBC7.5/60150-216-26088-75-671480D216-25×3XBC10.0/60150-216-260118-100-901480D216-25×4XBC12.5/60150-216-260147-125-1121480D216-25×5XBC6.5/134360-485-61271-65-561450250S65XBC9.0/219590-790-93693-90-821450300S90XBC7.8/210576-756-91886-78-70150300S90AXBC6.7/200540-720-90072-67-571450300S90BXBC5.8/219576-790-97265-58-501450300S58XBC5.0/204529-735-89355-50-421450300S58AXBC12.5/351850-1260-1660140-125-1001450350S125XBC11.2/328787-1181-1538120-112-861450350S125AXBC9.6/305697-1098-1363106-96-771450350S125BXBC7.5/351972-1260-144080-75-651450350S75XBC6.5/325900-1170-133270-65-561450350S75AXBC5.5/300813-1080-120259-55-461450350S75B  *The above specifications are for reference only.We will customize according to customer needs.Details ImagesCompany Work shopOur Service1. Warranty: 1 year for the pump body, 3 month for the main working parts.2. Delivery: Delivery time will be on time as the contract. Usually, our company need 30 working  days for diesel engine pump, and for bare shaft pump, it takes 25 working days,3. Package: We use wood case to pack our pump, which is durable for ocean transport.4. On-sales Service: we will clearly show you everything in fact when you place an order with us.We will take photos or videos to show you our production situation,And update the production situation to you.5. Quality: we will test our pump before delivery, and we will follow up on the pump working conditions per three mon
