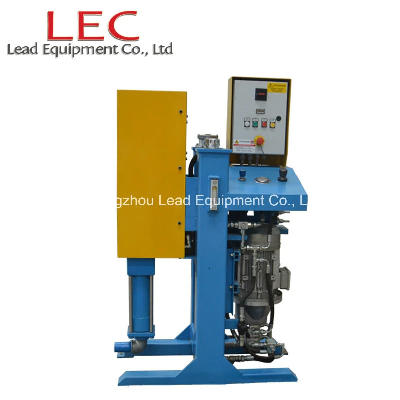

LGH75/100 PI-E High Pressure Electric Cement Grout Pump Product Description The LGH75/100 PI-E high pressure vertical grouting pump is designed and made for permeation grouting, compaction grouting, backfilling grouting, curtain grouting, high pressure split grouting etc, grouting methods.Grouting material: cement mixture, mortar/plaster, bentonite and other additive. Specification of cement grout injection pump ItemLGH75/100 PI-E grout pumpPiston diameter100mmPiston stroke150mmAdjustable pressure ( low pressure)0-50Bar/725psiAdjustable flow rate( low pressure)0-75L/minAdjustable pressure ( high pressure)0-100Bar/1450psiAdjustable flow rate ( high pressure)0-40L/minDischarge pipe size:M27x2Inlet pipe size:G2''Power Unit7.5kWChassisSkidWeight390KgOverall Dimension1040x550x1650mmNote: Chassis: Skid or TyreWe also could according to your demands to customize Applications of cement grout injection pump Civil Engineering -dam foundations, tunnels, mining, soil nails, tiebacks, earth anchors, cable and rock boltsStructural - building and bridge restoration, foundation stabilization, foundation raising, soil compaction grouting; soil & rock groutingConstruction - pavement under sealing, slab jacking and slab raisingMarine - underwater foundations, piers, breakers, shoreline foundationsMining - tunnel lining, contact grouting, shaft waterproofingUtilities - encasements, waterproofing, slope line groutingGeotechnical - deep well casing, monitor wells, well sealing and abandonment Features of cement grout injection pump Compact structure, light weight, easy operate, low maintenance cost;With digital display counter: it can display at any time, and can accumulate work times;Flow and pressure can be adjusted step-less;Equipped with emergency unloading valve: in case of an emergency, it can be load-off instantly;In low pressure, it will be flow-converging of two pumps; In high pressure, there is only one pump work. Low pressure and large flow, high pressure and low output;With full-hydraulic shaft device,stable and reliable operation;Cooling type: water-cooling and air cooling; Suitable for hot and cold areas. After-Sales ServiceDuring-sale service for cement grout injection pump1. Acceptance of the product2. Assist client product construction scheme After sale service1. Spare parts will be delivered as you need.2. Engineers will go to clients' site for guiding the installation and test-running;3. Warranty period: 12 months since the installation and commissioning; For more information about cement grout injection pump , please feel free to contact us. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
