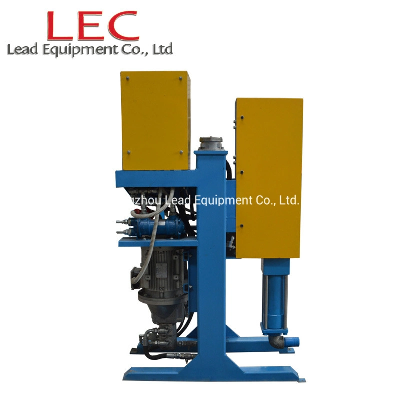

Lgh75/100 Pi-E Hydraulic Piston Injection Grout Pumps

LGH75/100 PI-E hydraulic piston injection grout pumps  Product Description :The LGH75/100 PI-E high-pressure vertical grouting pump is designed and made for permeation grouting, compaction grouting, backfilling grouting, curtain grouting, high-pressure split grouting, etc, grouting methods.Grouting material: cement mixture, mortar/plaster, bentonite, and other additives.   Specification of  cement grout injection pump ItemLGH75/100 PI-E grout pumpPiston diameter100mmPiston stroke150mmAdjustable pressure ( low pressure)0-50Bar/725psiAdjustable flow rate( low pressure)0-75L/minAdjustable pressure ( high pressure)0-100Bar/1450psiAdjustable flow rate ( high pressure)0-40L/minDischarge pipe size:M27x2Inlet pipe size:G2''Power Unit7.5kWChassisSkidWeight390KgOverall Dimension1040x550x1650mmNote: Chassis: Skid or TyreWe also could according to your demands customize  Applications of cement grout injection pump :Civil Engineering -dam foundations, tunnels, mining, soil nails, tiebacks, earth anchors, cable and rock boltsStructural - building and bridge restoration, foundation stabilization, foundation raising, soil compaction grouting; soil & rock groutingConstruction - pavement under sealing, slab jacking, and slab raisingMarine - underwater foundations, piers, breakers, shoreline foundationsMining - tunnel lining, contact grouting, shaft waterproofingUtilities - encasements, waterproofing, slope line groutingGeotechnical - deep well casing, monitor wells, well sealing, and abandonment  Features of cement grout injection pump :Compact structure, lightweight,  easy to operate, low maintenance cost;With digital display counter: it can display at any time, and can accumulate work times;Flow and pressure can be adjusted step-less;Equipped with emergency unloading valve: in case of an emergency, it can be load-off instantly;In low pressure, it will be flow-converging of two pumps; In high pressure, there is only one pump work. Low pressure and large flow, high pressure and low output;With full-hydraulic shaft device, stable and reliable operation;Cooling type: water-cooling and air cooling; Suitable for hot and cold areas. After-Sales ServiceDuring-sale service for cement grout injection pump1. Acceptance of the product2. Assist client product construction scheme After-sale service1. Spare parts will be delivered as you need.2. Engineers will go to the clients' sites for guiding the installation and test-running;3. Warranty period: 12 months from the installation and commissioning; For more information about cement grout injection pumps, please feel free to contact us.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
