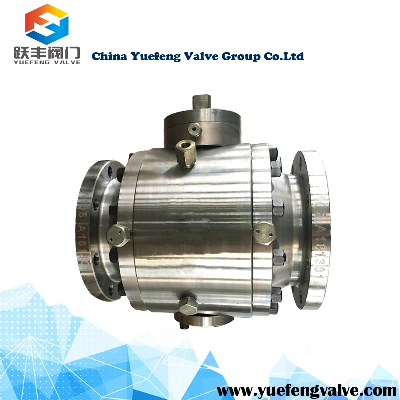

API Flange Forged Fix Stainless Steel Ball Valve

MAIN FEATURESThe side entry trunnion mounted ball valve has been designed two piece body type or three piece body type and with two floating seats, which are movable under the pressure of medium. Under the bottom of seats, seat pre-loading springs are positioned to ensure two floating seats can attach the ball's surface tightly, other more, pressure of medium also can push seats to attach ball tightly to ensure sealing more reliable. The trunnion ball valve is equipped with a movable seat seal ring which can generate displacement under the pressure of medium. In case that any medium pressure exists, the pressure will press the valve seat seal ring onto the ball tightly, guaranteeing the sealing performance of the ball valve.   Design FeaturesThe ball valve are designed in accordance with ISO14313,API 6D,BS 5351,GB/T 19672; Simple structure with good sealing performance and small torque; Full bore and reduced bore design with the minimum flow resistance (zero actually); Emergency sealant injection; Cavity pressure self relief; Independent ball and stem; Low emission packing; Fire safe, anti-static and anti-blowout stem design; Valve seat function DBB, DIB-1, DIB-2; Optional extended bonnet.   Product RangeBody material: carbon steel, stainless steel, alloy steel Nominal diameter:2"~60"(DN50~DN1500) End Connection: RF, RTJ, BW Pressure range: Class150~2500(PN16~PN420) Working temperature:-46ºC~+200ºC Operation: Wrench, worm gear, electric, pneumatic, gas over oil actuator and electro-hydraulic actuator Brand:YuefengApplicable Media:Water, Oil, Gas, Nitric Acid, Acetic AcidCertification:CE/RoHS/ISO9001-2008OriginalLishui,Zhejiang ProvincePacking:Plastic Bag, Carton & Plywood Case/According to customers' requirement.Payment: T/T, L/C, D/P, Western Union.Port: Shenzhen, Customers' RequestDelivery Time:Within 15days after receiving T/T deposit PaymentTerm of Delivery:EXW/FOB/CNF/CIF, Customers' RequestCertificates & Test reportsPacking&ShippingFAQQ:Are you a trading company or a manufacturer?We are a manufacturer with a 13,000 square metre factory.Q:Can you provide assembly drawings?Yes, we will provide the relevant drawings as soon as possible if you need them.Q:How do you guarantee the quality of your products?A: Before the products leave the factory, our quality inspectors will inspect each product before shipment to ensure the pass rate.Q: Can you produce different standard valves according to customers' requirements?A: Yes, please provide specific details, such as model, size, pressure, material and so on.Q:How long is your delivery time?A: Usually 15-30 days, it depends on the order quantity and our storage./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
