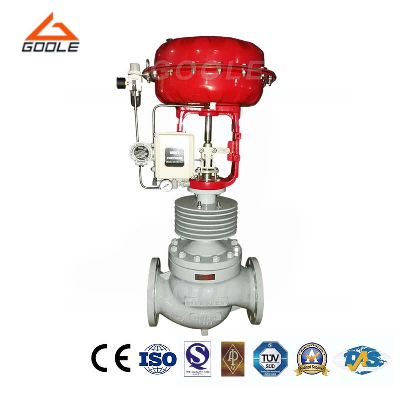

Pneumatic Single-Seat Globe Control Valve (GAZJHP)

Pneumatic Single-Seat Globe Control Valve (GAZJHP)Product Description1. Pneumatic Single-Seat Globe Control Valve (GAZJHP) :         This product is composed of the pneumatic multi-springs, pneumatic actuator and the low flow resistance sleeve. This valve uses the balanced valve core, the unbalanced force is small, the permission pressure differential is big, and operation is steady. Compared with the ordinary single and double seat-regulating valve, it has low noise, simple structure and convenient assembling and dismantling characteristics.         Its valve shape is small, the body is light, the performance is good, and the capacity is big. So it's the new type general regulating valve product. It is suitable for the common fluid medium and techniques condition industrial control system.      The working temperature for normal Structure can be up to 250 Deg C. If the working temperature is higher than 250 Deg C, then Heat Radiator should be used. And trim should be done heat treatment.Specification2. Pneumatic Single-Seat Globe Control Valve (GAZJHP) Options:This series Product has Standard type, Regulating Cutting Type, Bellow Seal Type, Jacket Type, etc.Product Details3. Pneumatic Single-Seat Globe Control Valve (GAZJHP) Main Parts Material:Valve Body/Cap:    S.S304.Valve Core/ Seat:  S.S304, Stellite.Packing:                  PTFE.Gasket::                  Graphite.Membrane Cover: A3.Spring:                    60Si2Mn.Valve Stem:            S.S 304.Nut/Bolt::                 S.S 304.Product Parameters4. Pneumatic Single-Seat Globe Control Valve (GAZJHP) Main Dimensions:DN1012152025324050   6580100125150200250300CvLinear1.82.84.46.91117.627.5446911017627544069011001760Equal Percentage1.62.54.06.3101625406310016025040063010001600Movement L(mm)1016254060100Effective Area(cm2)28010060010001600SignalRange(Kpa)20~100, 40~200,80~240;20~60,60~100Power Source (MPa)0.14~0.4Flow CharacteristicLinear or Equal PercentageAdjustable Ratio50:1Working Temp. (ºC)Normal Temp,-20~200, -40~250, -60~450Cooling Type-40~450, -60~450High Temp450~560Low Temp.-60~100, -100 ~-200, -200 ~-250View of the factory  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
