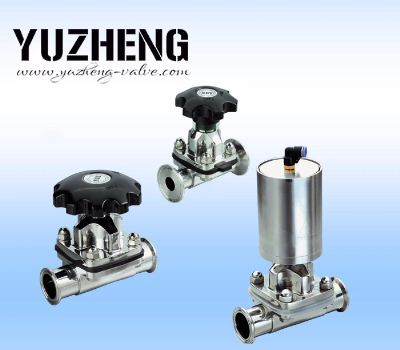

Sanitary Clamped Pneumatic Diaphragm Valves

Sanitary clamped pneumatic diaphragm valve   Description Size1"-4"MaterialSS304/SS316LPressure10 BarSuitable Temperature-10~120 degree(EPDM)Body ConstructionStraight, Three Ways and U TypePneumaticSS or Plastic Pneumatic OptionInternal Surface PolishRa≤0.5umExternal Surface FinishSatin/BrightApplicationBeer, Food, Dairy, Beverage etc.Work principle: The diaphragm is close under normal state, and that moment the diaphragm clung to the valve body cavity, and closing off the flow path through the pipeline. When the diaphragm valve have the requirement to clean or open. The valve stem moves upwards according to the manual or pneumatic actuator equipment, spherical diaphragms naturally upwards, so that the valve is open and reach the requirement of clean and open. The diaphragm make the lower body cavity and the upper chamber separated from the valve cover, so that the stem at the top of the diaphragm, disc media and other parts from corrsion, eliminating the need for packing structure, and no media leaks, the optimize valve body made the cleaning liquid flow out totally, so that don't have any entrapment.   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
