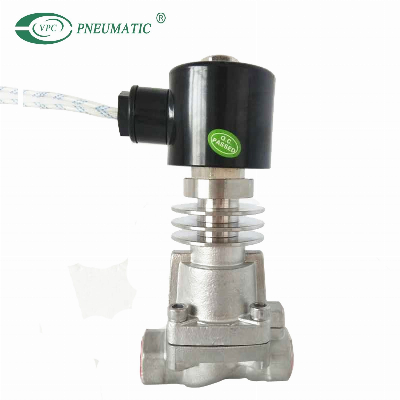

Slh High Temperature Thermal Oil Pneumatic Solenoid Valve for Steam

VPC SLH Series DC24V High temperature Thermal Oil Pneumatic Solenoid Valve for SteamOrdering Code SLH Series High Temperature Stainless Steel Solenoid ValveSLH 15 - - 10L - AC220VSLH→Type Code15→Joint Size10:3/8" 15:1/2" 20:3/4" 25:1" 35:1-1/4" 40:1-1/2" 50:2" F:With Flange→sealsT: T-e-f-l-o-n10L→Orifice15L:15.0 20L:20.0 25L:25.0 35L:35.0 40L:40.0 50L:50.0Cancel if same with port size   →Valve BodyS:SS304AC220V→Standard VoltageAC110V AC220V DC24V   Joint Size (G)     Orifice (mm)     CV Value Pressure Differential(Bar   Max Liquid Temperature (ºC)  External Dimension     Model Code    Min. Pressure Max.Working Pressure Heat-conducting oil Steam LXWXH AXBXH 3/8" 15 4.5 0.5 16 16 250 75X52X159 SLH10T-15LS 1/2" 15 4.5 0.5 16 16 250 75X52X159 SLH-15TS 3/4" 20 8.0 0.5 16 16 250 85X60X171 SLH-20TS 1" 25 12 0.5 16 16 250 100X70X178 SLH-25TS 1-1/4" 35 22 0.5 16 16 250 120X90X198 SLH-35TS 1-1/2" 35 22 0.5 16 16 250 120X90X198 SLH-40TS 2" 50 45 0.5 16 16 250 150X110X220 SLH-50TS         Flange Connec-tion 25 12 0.5 16 16 250         See Following List SLHFT-25LS 32 22 0.5 16 16 250 SLHFT-32LS 40 22 0.5 16 16 250 SLHFT-40LS 50 45 0.5 16 16 250 SLHFT-50LS SLH Stainless Steel High Temperature Solenoid Valve's Summary:Widely used in aerospace, shipbuilding industry, nuclear industry, petrochemical, power, chemical, light industry, machinery, research, drying equipment, food, medical, cleaning equipment, automation control pipeline medium temperature above 300 ºC thermal system in.Structural features:Patented technology, design temperature;Stainless steel piston valve structure, stable performance;Special materials, high dynamic sealing performance, long life;Authoritarian coil, and a structured way of cooling, easily burned;NOTE: Coil the best selection of impulse control or self-retaining controlProduct parameters:★ Specifications: DN0.5 ~ DN500★ Suitable medium: gas, steam, oil, etc.★ Control: Normally closed, normally open★ Body material: steel, stainless steel★ Power supply voltage: DC12 ~ 127V AC36 ~ 380V★ medium temperature: + 250, + 350, + 450, + 500, + 600, + 650 ºC★ Connection: flange, welding, internal thread (male and special interfaces or add custom adapter)★ protective properties: dust proof. According to the conditions selection★ Wiring: Terminal Block Type; lead type; male★ leakage amount: zero
