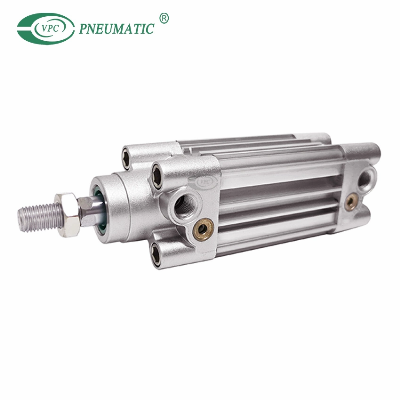

ISO15552 Cp96s Series Double Acting Tie Rod Pneumatic Air Cylinder

Product Description ISO15552 Standard Cylinder SMC Type C96SDB63-100 Tie Rod Air Piston Double Acting Pneumatic Cylinder  FeaturesC96 Series cylinders conform to ISO 15552. The series is available with a single or double rod in 6 bore sizes from ø32 to ø125mm.The air cushion and bumper cushion combination greatly reduces noise at the end of stroke. High accuracy covers and tie rod nuts improve mounting accuracy and extend the cylinder life. Increasing the precision of the bushing and piston rod, as well as reducing tolerances, has decreased the deflection of the piston rod. Standard strokes range from 25 to 800mm.    Bore size(mm)3240506380100125working mediumAirActing type Double actingProof pressure1.5MpaMax.operating pressure1.0MpaMin.operating pressure0.05MpaAmbient and fluid temperaturewithout auto switch:-20 to 70ºC(No freezing)with auto switch:-10 to 60ºC(No freezing)LubricationNot required (Non-lube)Operating piston speed50 to 1000mm/s50 to 700mm/sAllowable stroke toleranceUp to 250 st:+1.0,251 to 1000 st:+1.4,1001 to 1500 st:+1.8,1501 to 2000 st:+2.2                         0                                 0                                     0                                   0           CushionAir cushionPort sizeG1/8G1/4G1/4G3/8G3/8G1/2G1/2MountingBasic,Axial foot,Rod flange,Head flange,Single clevis,Double clevis,Center trunnion                             About us                 /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
