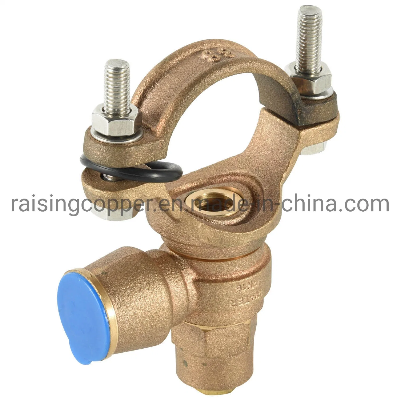

Push Fit Gunmetal Self-Tapping Ferrule Straps 110-118MM self-tapping ferrule straps 165-173MM self-tapping ferrule straps Self Tapping ferrule straps with top and bottom half made of cast gunmetal to BS1400 LG2 cast,with A2 grade stainless steel bolts and M12 nuts and EPDM rubber O ring seal under Boss.Top and bottom half to fit UPVC water mains with outside diameter 110/118 and 165/173mm,Ferrule stem in Bronze with integral aluminium bronze or stainless steel cutter,Acetal Banjo with 20 or 25mm push fit connection for HDPE pipe.Acetal top and EPDM sealing washers. Simple and quick installation can be made dry or under pressure Bronze saddle with inlet thread 1/2" to 2", technical specification: working pressure: 16bar (1.6mpa) tested pressure: 24bars (2.4mpa) we are in a position to accept order against customer's samples, specify design, specification. Description Material: Bronze Top saddle, bottom saddle, stainless steel bolts, nuts and washers and NBR or EPDM o-ring.Bronze can be C83600,LG2, B62 and C84400,etc. Size110-118mm ,165mm-173mmTesting Pressure100% tested with 0.6MPa - 0.8MPa by air.ThreadNPT, NPTF, NPSM, UNSF, BSP, BSPT for selecting Working temperature-20 to 120° CSuitable mediumWater, no-causticity liquid, and gasSamples Time1) 2 days - For our existing samples for reference2) 30days - If new size, need make the new mouldOEM Acceptable YesProduction Capacity 50,000 pcs each monthPacking Details Poly bag, inner box, out carton and pallet. Payment TermT/T ,L/C,,WESTERN UNIONDelivery Timeone month after confirm all detailMinimum Order Quantity 500-2000 pcsOur factory specialized in manufacturing kinds of bronze/brass valves,brass insert for fittings&coupling,we can produce according to your design. Since we are authentic manufacturer ,we will be able to maximize your profit and guarantee good quality,we have ISO9001:2008 certificate. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
