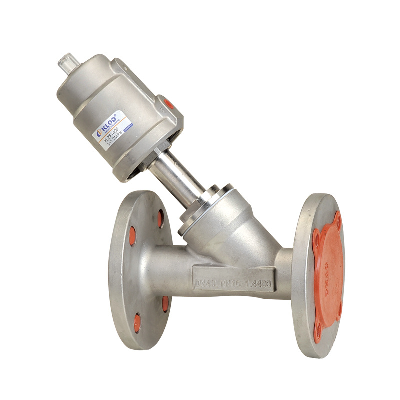

Features of Angle Seat Valve 1.With valve open or closed position display 2.Pneumatic external pilot,can increase the service life,maintenance-free. 3.There is a self-adjusting seal gland between the overflow port and the slider to improve the sealing performance 4.Y-type structure design enabling large flow(compared with globe valve),compact structure ,fast response NOTICE Flow direction below the seat(direction A) 1.Valves with flow direction below the seat(direction A) ensure long service life 2.Valves used fo liquid media are waterhammer-free.Valves with dirction B 1.provide high sealing integrity when media is steam or air 2.2There is no waterhammer free function when media is liquid Installation & Maintenance The applicable safety regulations must be observed 1.Make sure the pipe line is clean 2.Insallation according to requirement check the flow direction before installation 3.Connect the valve to the pipeline and remove the actuator only if the user requires it 4.Shut off the fluid and control air supply and reduce pressure in the piping system before poening or servicing the angle valve Ningbo Kailing Pneumatic Co., Ltd. (formerly named Fenghua Kailing Pneumatic Co., Ltd. ) is a leading Chinese company specializing in the manufacture of solenoid valves and pneumatic components. We are a key member China of Pneumatic Association, and is awarded AAA Credit Grade by Bank of China.High quality of the raw materials, the precision of the parts, the hard tests during and at the end of production are a warranty of reliability and features. Our real strength is to develop customised products to solve any requirement of utilisation. The production runs conforming to the rigorous ISO 9001/2000 requirements. The product range consists of solenoid valves, process valves, Air source treatment units etc, which are found in a variety of industrial applications such as machinery, metallurgy, food, textile and waste treatment.Certificates: CE, ISO, RoHSSmall order policy: Accept small ordersDelivery: We have stock for most of products.Packing: Cartons, PalletsPayment: Bank T/T, Western Union, Paypal. L/CDelivery: Air, Express, SeaWe keep creating new innovation to offer the best solutions for your fluid control requirements. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
