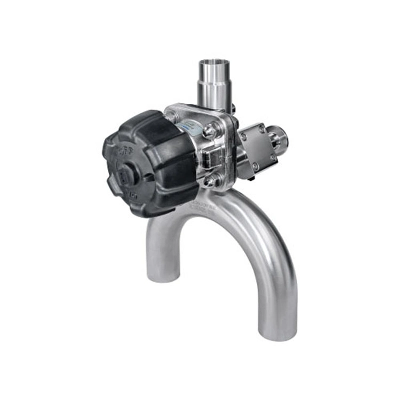

ASME Bpe Zero Dead Leg Diaphragm Valve in Pharamaceutical Process System

ASME Bpe Zero Dead Leg Diaphragm Valve Donjoy ASME Bpe Zero Dead Leg Diaphragm Valve  conducted a comprehensive technology update in 2015. The upgraded design more in line with GMP, ASME BPE, EHEDG and 3A of the technical requirements of high purity. Especially for handling dead angle reached requirement ≤ 1D to ≤ 3D. Technical specification:Size1"-4", DN25-DN100MaterialForging body: 1.4404/ 316L/ASME BPE 316L/ 1.4435 BN2 Fe≤0.5Casting body: 1.4404/316L/ ASTM A351 CF3MMax. temperature-30 ºC to 150 ºC (depending on diaphragm) (stainless steel wheel)-30 ºC to 130 ºC(depending on diaphragm) (plastic wheel)Max. pressure10 barConnection designwelding, clamp, flange, thread, DIN 11864 aseptic flange, clamp, threadSurfaceStandard inside surface mirror polished RA≤0.4 micron, or RA≤0.3 micron (option)Body structureT type-Tee, L type-Tee, U type-Tee, multiport, tank bottom valve and various body structuresOperation wayManual: plastic and stainless steel handwheelPneumatic: plastic box stainless steel pneumatic actuator, multifunctional pneumatic actuator.Control:IL-TOP intelligent positioner, C-TOP intelligent control unit, FKQ-TOP, position feedback device, intelligent electric actuator, manual flow regulatorLong life designBelow 2 bar, maximum life of 800 million times.Application scopedairy, food, beverage, water processing, wine fine chemicals, pharmaceutical industries etc.Certificate3-A,CE PED/97/23/EC, FDA.177.2600ISO9001Packaging detailsBubble pack for each valve.Outside packing is by carton or plywood case.ASME Bpe Zero Dead Leg Diaphragm Valve Feature:1.Donjoy manufacture more than 27 years,which means we had upgraded and optimized many times,solve the problem in advance to ensure best performance and best application.2.Manufactured more than 1 million pcs3.Forged body,one time CNC machining, guarantee machining precision.4.Euro and Japan mported seals,meet FDA standard.5.Manual type,pneumatic type, electric type all interchangeable.6.Have certificate of FDA,3-A ,CE.   Connection:  Clamped, welded and threaded,flanged etc.  Packaging Details: Bubble pack for each valve. Outside packing is by carton or plywood case. If you have any inquiry, please leave message below and "Click Send "/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
