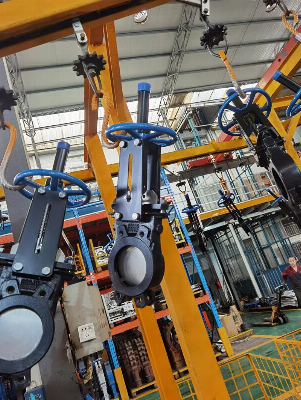

En1092 Pn10 Wafer Knife Gate Valve

Unidirectional Knife Gate Valve Guanli GKU SerieWafer design valve. One piece cast body with guides to support gate and seat wedges. Provides high flow rates with low pressure drop and include various seat and packing materials available. Face to face dimension in accordance with Guanli Manufacturer's standard.An arrow is marked on the body indicating the flow direction. This knife gate valve is suitable for liquids that contain a maximum of 5% suspended solids.If it is used for dry solids in gravity feed applications it should be installed with the arrow on the body pointing in the opposite direction to the flow.GENERAL APPLICATIONSThis knife gate valve is suitable for liquids that contain amaximum of 5% suspended solids. If it is used for drysolids in gravity feed applications it should be installed withthe arrow on the body pointing in the opposite direction tothe fl ow.Designed for applications such as:• Paper Industry• Mining• Silo emptying• Chemical plants• Pumping• Food Industry• Sewage treatment.Material OptionsBody material-GGG40/SS304/SS316/Duplex SS/SM0 254/HC 276/TatiniumKnife Material-SS304, SS316, SS2205, SS2507Seat Type-NBR,EPDM,FKM, Metal to MetalSupport Yoke-A36 with FBE Coating, SS304Standard flange connection:EN PN10JIS 10KDriven typesManual-Handwheel &Bevel gearPneumatic ActuatorHydraulic Actuator  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
