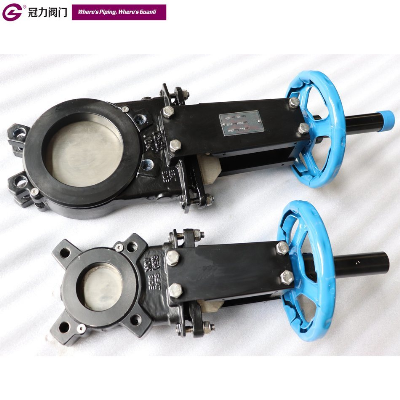

The guanli GKO serie is modular designed and it can easily be customized in materials, with actuators and related automation accessories to different process conditions.As standard it is available in a stainless steel version and duction iron body, but it can also be supplied in a range of high alloy materials such as Duplex and 254 SMO. The GKO retainer ring system offers great flexibility and several seat material options.Size from DN50-DN600 2"-24' , large size on requestFlange drillingEN 1092 PN 10JIS B 2238 10KANSI B16.5 Class 150ANSI B16.47 A Class 150BS 10 Table D Pressure testsPressure tests are performed with water at 20º C according to EN 12266-1:2003.Pressure for shell test: 1,5 times maximum allowable working pressure for open valve.Pressure for seat tightness test: 1,1 times maximum allowable differential pressure for closed valve. GUANLI GKO BODYMaximum working pressure body at 20°CMaximum differential pressure in preferred direction at 20°CDNbarDNbar50 - 2501550 - 25015 300-45010 300-45010500 - 6006500 - 6006DrivenHandwheel Bevel gearHydraulicPneumatic CylinderDouble acting ActuatorSpring Return ActuatorFC/FO Knife gate valve Accessories Solenoid valve Mechanical limit switchInductive limit switch Magnetic limit switchStem extension Deflection cone V-portPurge ports on orderSolid solution body improve machinical propertiesWafer type casting in PN10 and JIS Full lug type casings in ASME Class 150 A series, ANSI B16.5 Class100% body testing100% seat testCustomized designe on request CNC machining make the demensions in accurate controlLarge inventory, short delivery time Guanli Company Honor Rich experience in knife gate valve fields for decade years, the quality equalvent with famous brand. Guanli Company Honor 2Manufacturer directlyTechinical support available /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
