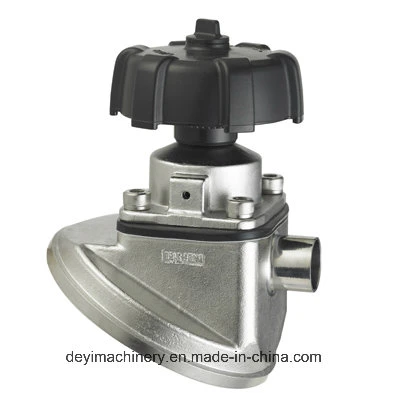

Stainless Steel Sanitary Diaphragm Valve (DY-V09)Product Description:Diaphragm valves:Manual or air actuated.are specially designed for hygienic and asepsis processes in pharmacy industry.This valve is excellent for controlling as well as on/off fluid.Diaphragm seals the valve body and seat.There is no way to contact the environment.So this valve is suitable for asepsis process.When the valve is off.The pressure seal that holding up diaphragm moves towards to the sealing face of valve body.When the pressure plate moves,the diaphragm bending.forced towards to seat area of body center.So that to shut off the flow path to valve body.The relevant of valve body and pressure plate prevents the diaphragm pressing.The valve can be manual and air actuated,also can be operated by control top and soleniod valve.DrawingTechnical Datas:Valve Body MaterialSS316LAvailably standard 3A/BPE/DIN/ISO/IDF/SMSAvailably size1"-3",DN20-DN65 Seal MaterialPTFE + EPDM (double layer) / EPDM / SILICON / FPM (VITON)Availably connectionClamp/weld/thread/special connectionOperated Manual,PneumaticMax. Working Pressure10BarAvailably structureStraight, tee, U-type, tank bottomMax. Working Temperature120 degree CApplication scopeDairy,food, beverage, pharmacy, cosmetic, etc Wenzhou DEYI Machinery Co., Ltd is a comprehensive and professional manufacturer, being integrating in designing, developing, manufacturing of sanitary valves, pipe fittings, pumps, tanks, homogenizers, CIP cleaning system, sterilizers for dairy, beer and beverage industries, etc.We can quote you favorable price & high quality & best after-sale services. Welcome to visit our factory More Products: Sanitary valveSanitary Butterfly ValvesSanitary Check ValvesSanitary Ball ValvessSanitary Reversal ValveSanitary Diaphragm ValvesSanitary Sample ValvesSanitary Pipe FittingsSanitary ElbowSanitary TeeSanitary ReducerSanitary CrossSanitary Triclamp FerruleSanitary CapSanitary Pipe HangerSanitary Tank Cleaning BallSanitary Hose JointSanitary UnionsSanitary Sight GlassSanitary StrainerSanitary ManwaysSanitary Round Manway without PressureSanitary Round Manway with PressureSanitary Square ManwaySanitary Oval ManwaySanitary PumpsSanitary Centrifugal PumpSanitary Lobe PumpSanitary Self Priming PumpSanitary TanksStorage TankFermentation TankMixing TankWarm-keeping TankSanitary TubeSeamless TubeWeldless TubeSanitary GasketSilicone/EPDM Gasket for TriclampSilicone/EPDM Gasket for UnionSilicone/EPDM Gasket for Butterfly ValvTo get more Information at our websites: deyimachinery.en.made-in-china.com, deyimachinery.en.made-in-china.com Company Profile FAQQ1. Are you a trading company or factory? We are a manufacturing factory.Q2. Do you have FDA certificate for the materials? FDA is very important for the food processing machines.Q3. May I have free sample before ordering? Yes,our company is very pleased to send to you free sample for quality test as long as freight cost being paid by buyers themselves.Q4. What's the payment terms? For small testing orders,we accept Paypal,Western Union,T/T and credit Card. For mass orders,we accept T/T and L/C.Q5.How do you control the quality? Quality control is very important to avoid material mixing and poor quality.We control the quality from beginning to the end.We only have 304 and 316L two different materials.100% inspection on raw material.During production,different materials in different place.After materials are finished,we choose 10% for inspection.If there is 0.1% problem in 10%,then no excuse to go ahead for inspecting 100% of the materials.Q6.If there is any quality problem,how do you solve it? We are proud that we never let one customer leave us.We are not 100% perfect,there is some quality problem.We try our best to provide the correct materials in the beginning,so we need less time for quality problem.If there is any quality problem,we take the responsibility.We believe what we are doing together,it will get back tomorrow.If we leave our responsibility,customer will leave us.If we always take our responsibility,we keep our customers with us.Q7.How long is your delivery time? For normal production in 7-10days.For bulk order in 15-25days.Q8.Warranty One year warranty for all of our stainless steel products.Gaskets are not included due to the different application for customers.Q9.More questions are appreciated.Stainless Steel Sanitary Diaphragm Valve with Drain/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
