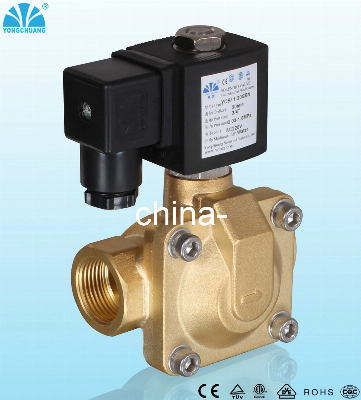

Normally Closed Low Power Longer Life Water Solenoid Valve (YCB11)

Normally closed low power longer life water solenoid valvePackaging & DeliveryPackaging Detail: Export cartons: 31*25*21cm then into wooden palletDelivery Detail: 20 days after receiving depositSpecificationsWater solenoid valve1. ISO 9001: 2000, CE approved2.1 million times life testing3. Reliable quality4, One year gurranteeWater solenoid valve1. ISO 9001: 2000, CE approved2.1 million times life testing3. Reliable quality4, One year gurranteeTechnical parameter-YCB11 Diaphragm Pilot Operated, Normally closed solenoid valveCharacteristic1. Pilot operated diaphragm structure with less power comsumption for long time working2. Applied to pressure system opened from 0.03 Mpa3. Life span can be over 1 million timesMediumAir, water etc.TemperatureNBR: -10°C to 80 °CEPDM: -10°C to 120 °CVITON: -10°C to 150 °CPressure0.03-1.6MpaPort size3/8'-1'Port threadG. BSPT, BSP, NPT, PTOrifice12, 15, 20, 25mmVoltageDC-12V, 24VAC-24V, 120V, 240V/60Hz, 110V, 220V/50HzTolerance±10%CoilsSA11B, 9VA(AC), 6W(DC) IP 65, 100% EDS91B, 22VA(AC), 17W(DC) IP65, 100% EDSpecial coils Latching coil: DC6-24V as requestedMaterialBody- brass or stainless steelSeal- NBR, EPDM, VITONAmature tube-stainless steel 304Plunger-stainless steel430FStop-stainless steel 430FSprings-SS304Shading rings- stainless steel 304WorkshopOur CertificationsProduction DeliveryProducts will arrive to your office in 7~15 days after the payment is finished.We will dispatch the valves by DHL, FedEx, TNT, UPS or by sea, it just depends on the weight of the products as well as your choice.Our serviceFor OEM productsWe will finish the production within 15 days after payment has been confirmed.cooperation with PARKER to improve our quality!WarrantyAny question or problem will be respond within 24 hours.One year guarantee:One year since delivery.Lifetime service:Any problem happened to our product, we will do our best to help client to solve it, spare parts will be half price in lifetime.Problem solve:If you can't solve the problem in your local, please delivery the product to us, we will repare it, or we send our technicist to you.Quality control:All the products are calibrated with real working condition, and 100%tested before shipping as qualified product.Integrity:All the warrenty and guarantee from us will be put into come true.Detail Contact Information:Name: Emily YanTel: +86-574-62507206 FAX: +86-574-62505192Cell: +86-13738891676Thanks for your inquire!You can according the below table to select type for yourself!  Valve body  Port Size Orifice Cv Min Pressure Max Pressure SealsMaterial BodyMaterial Coil AC(22VA)/DC(17W)   YCB1112 X XX 3/8" 12 4.5 0. 03MPa 1. 6MPa NBR,EPDM,or VITON, Brass, orStainless Steel S91B   YCB1115 X XX 1/2" 15 4.5 0. 03MPa 1. 6MPa S91B   YCB1120 X XX 3/4" 20 9.3 0. 03MPa 1. 6MPa S91B   YCB1125 X XX 1" 25 12 0. 03MPa 1. 6MPa S91B
