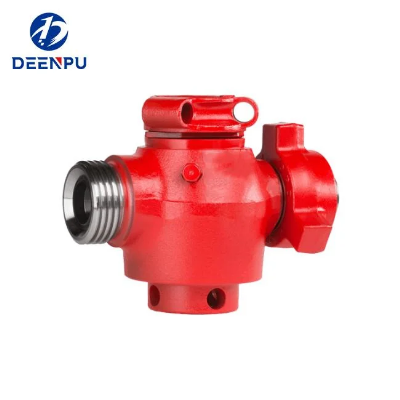

3" API Oilfield Plug Valve/ High Pressure Plug Valve

API 6A Plug ValvesHigh pressure plug valve material and working pressure:Forged of quality high strength alloy steel, are low torque valves based on the technologies introduced from SPM. 1″,2″, and 3″ plug valves with a rated working pressure of 6000,10000,15000 psi(42,70,105MPa) are available.Working surrounding:They can work in normal temperature, low temperature or H2S environments. The model of plug  valve available: SF42-1″×2″, SF70-1″×2″, SF105-1″×2″, SF42-2″×2″, SF70-2″×2″, SF100-2″×2″, SF42-3″×3″, SF70-3″×3″, SF105-3″×3″,  rated: 6000psi(42MPa)~15000psi(105MPa).Type of end connection:End connections of plug valves with sizes in the English system may be union or male/female thread (LP, TBG), and they can be freely connected with products in the international market.The advantage for maintenance:Can be done without removal, and no special tools are needed for removal.good sealing performance:Visible: There is a visible positioner where we can see if the valve is open or closed. The brake spring will limit the position of the valve.  3″handwheel opener is suitable for opening in low temperature. Valves can be opened freely and flexibly.  S/NModelDescriptionRatedWPEnd connection1SF42-1"1" plug valve6000psi2" male (LP)2SF70-1"1" plug vlave10000psi2" male (LP)3SF105-1"1" plug vlave15000psi2" male (LP)4SF105-1"1" plug vlave15000psi2" union(F*M)5SF42-2"2" plug vlave6000psi2" female (LP)6SF42-2"2" plug vlave6000psi2" union (F*M)7SF70-2"2" plug vlave10000psi2" female (LP)8SF105-2"2" plug vlave15000psi2" union (F*M)9SF42-3"3" plug vlave6000psi3" female (LP)10SF70-3"3" plug vlave10000psi3" female (LP)11SF105-3"3" plug vlave15000psi3" union (F*M)    Product Name High pressure plug valve Working Pressure 42MPA~140MPA Nominal Bore 1-3 Inch Working Medium oil,natural gas,mud and gas containing H2S,CO2 Working Temperature -29°C~121°C(Class PU) Material Class AA,BB,CC,DD,EE,FF,HH Specification level PSL1-4   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
