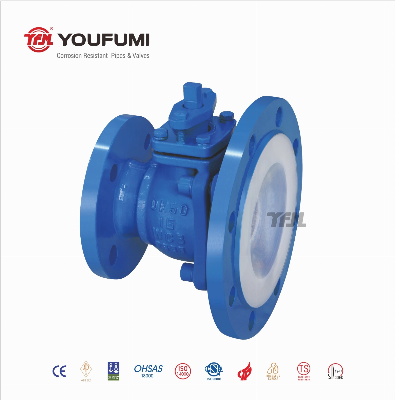

Discharge Ball Valve with PFA Lined for Corrosion

Discharge Ball Valve with PFA Lined for corrosion Technical Specification Design and Manufacture: ASME B16.34 End-to-end dimension: HG/T3704 Flange Standard: ASME/ANSI 16.5 Inspection and testing: API 598 Product Specification Body Material: A216/WCB, A351/CF8, A351/CF8M, A351/CF3, A351/CF3M, LCB, A536 Ball, Stem: A216/WCB, A351/CF8, A351/CF8M, A351/CF3, A351/CF3M Lining Material: PFA, FEP, PTFE, PO Nominal Diameter: NPS 1/2-16 Pressure Range: 150lb 300lb JIS DIN Connection Type: Flange connection Operation Method: Manual, Worm Gear etc. Products Description: 1. Two pieces full port standard lined ball valves offer high stability, rigidity and eliminating potential leak path. 2. Full port design minimizes pressure losses and increases flow capacities thus reducing energy and pumping costs. 3. Full bore design almost no fluid resistance, and good shut-off performance. 4. It features zero leakage, maintenance-free, one-piece stem and ball design, high sealing performance and can be used under full vacuum service. 5. Lower pressure drop and high flow characterized the efficiency of Youfumi lined ball valves. 6. It can work as on-off or control valve. 7. It can sustain any corrosive medium in addition to the Molten alkali metals and fluorine elements . It is ideal products used in chlor-alkali, industrial in organic chemicals, metal and mining, nitrogen and phosphatic fertilizers, petroleum refining, pharmaceutical etc. 8. Lining material: PFA, FEP, GXPO etc. 9. Operation methods: Manual, worm gear, electric, pneumatic and hydraulic actuator. 10. Youfumi lined ball valves are available as per the needs of applications in additional sizes and other than standard materials. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
