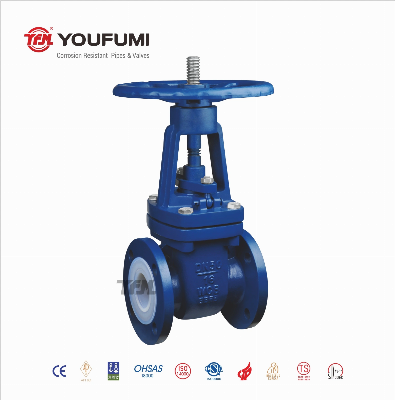

PFA Lined Gate Valve Rising Stem for Chemical

PTFE Lined Gate Valve rising stem for chemicalTechnical Specification Design and Manufacture: ASME B16.34 End-to-end dimension: ASME/ANSI 16.10 Flange Standard: ASME/ANSI 16.5 Inspection and testing: API 598 Product Specification Body Material: A216/WCB, A351/CF8, A351/CF8M, A351/CF3, A351/CF3M, LCB, A536 Wedge Disc: A351/CF8, A351/CF8M, A351/CF3, A351/CF3M Stem Material: SS304, SS410, SS416, SS420 Lining Material? ? PFA, FEP, PTFE, PO Nominal Diameter: NPS 1-16 Pressure Range: 150lb 300lb JIS DIN Connection Type: Flange connection Operation Method: Hand wheel etc. Product description: 1. Gate valve can be divided into rising stem gate valve, which refers to the disc doing lift movement in straight line along with the valve stem, and non-rising stem gate valve which refers to the stem nut located in the disc, when the stem rotates, the disc doing lift movement in straight line. 2. Youfumi lined gate valve adopts new design structure, solving the inconvenient or jammed operation phenomenon caused by particles, fibers and medium deposition in the screw groove of common non-rising gate valve. 3. Valve installation position is not subject to any restrictions. 4. It can sustain any corrosive medium in addition to the? ? Molten alkali metals and fluorine elements? ? . It is ideal products used in chlor-alkali, industrial in organic chemicals, metal and mining, nitrogen and phosphatic fertilizers, petroleum refining, pharmaceutical etc. 5. Lining material: PFA, FEP, GXPO etc. 6. Operation methods: Manual, worm gear, electric, pneumatic and hydraulic actuator. 7. Youfumi lined gate valves are available as per the needs of applications in additional sizes and other than standard materials. Material Specification: 1. Body/bonnet: WCB/CF8/CF8M/CF3/CF3M 2. Located clamp/Gland: WCB/CF8/CF8M/CF3/CF3M 3. Stem: 2Cr13; SS304; SS410 4. Lining material/Seat: FEP; PFA; GXPO 5. Stem nut: Copper 6. Handwheel: QT400-15 7. Bolt: A193 B7; A320 B8 8. Nut: A194 2H; A194 8   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
